Removal
SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION ECU: REMOVAL
1. PRECAUTION
CAUTION:
Be sure to read Precaution thoroughly before servicing Service Precautions.
2. REMOVE FRONT SEAT ASSEMBLY RH
HINT
Use the same procedure for the RH side and the LH side.
for Manual Seat: Removal
for Power Seat: Removal
3. REMOVE OCCUPANT CLASSIFICATION ECU

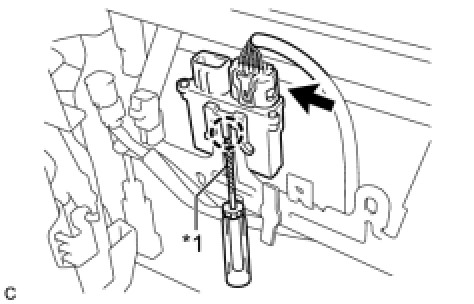

(a) Disconnect the connector from the occupant classification ECU.
Text in Illustration
(b) Using a screwdriver with the tip wrapped with protective tape, disengage the claw to remove the occupant classification ECU.
