Water Pump

WATER PUMP ASSEMBLY

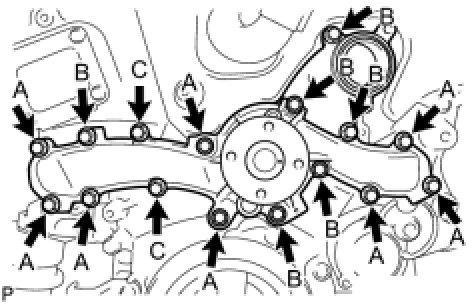

Install a new water pump gasket and the water pump assembly with the 16 bolts.

Bolt A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Bolts B and C - Torque 11 Nm (112 kgf-cm, 8 ft-lbf)

NOTICE:
* Make sure that there is no oil on the threads of bolts A.
* Be sure to replace 2 bolts C with new ones or reuse them after applying adhesive 1344.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent
