Unlock Position Sensor Signal Circuit





STEERING COLUMN: STEERING LOCK SYSTEM: Unlock Position Sensor Signal Circuit
- Unlock Position Sensor Signal Circuit

DESCRIPTION

The unlock position sensor is one of the components comprising the steering lock ECU (steering lock actuator assembly). The sensor switch contact closes when the steering lock is released. The steering lock release signal is then sent to the power management control ECU. Upon receiving the signal, the ECU permits engine start. This prevents the engine from being started with the steering wheel locked.

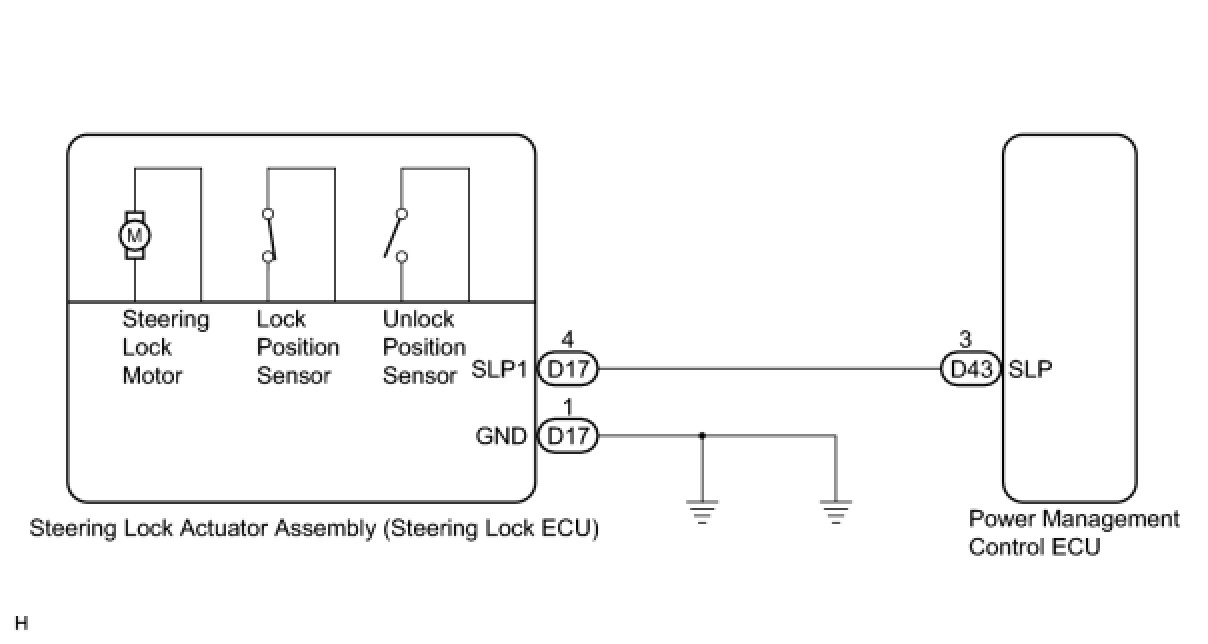

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
After replacing the steering lock ECU (steering lock actuator assembly), confirm the Initialization of the steering lock Programming and Relearning.

PROCEDURE

1. INSPECT STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)

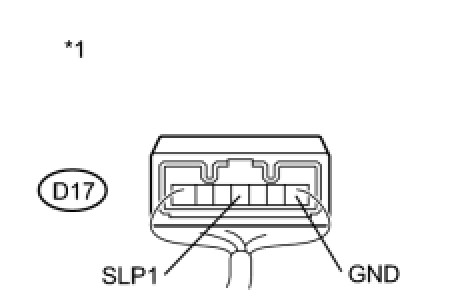

(a) Measure the voltage according to the value(s) in the table below.

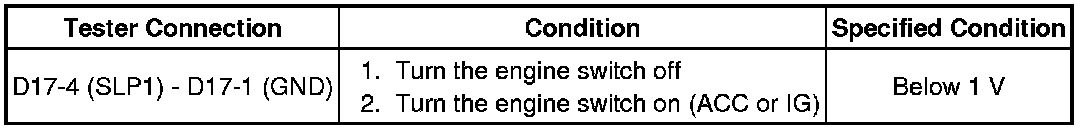

Standard Voltage:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - POWER MANAGEMENT CONTROL ECU)

OK -- REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) Disassembly

2. CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - POWER MANAGEMENT CONTROL ECU)

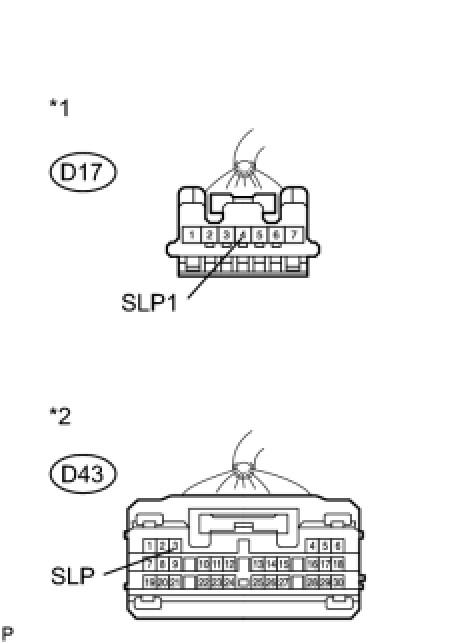

(a) Disconnect the D17 connector from the steering lock ECU (steering lock actuator assembly).





(b) Disconnect the D43 connector from the power management control ECU.

(c) Measure the resistance according to the value(s) in the table below.

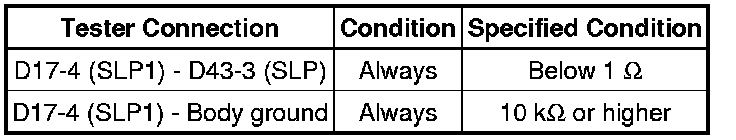

Standard Resistance:

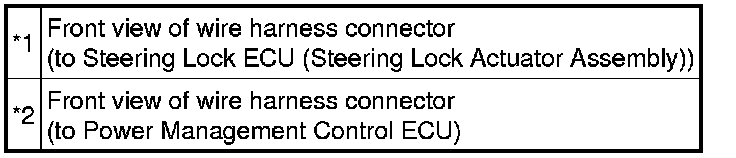

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- CHECK SMART KEY SYSTEM (for Start Function) How To Proceed With Troubleshooting
