Removal





AIR CONDITIONING: COMPRESSOR (for 1NZ-FE): REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

3. REMOVE ENGINE UNDER COVER RH

4. REMOVE FAN & GENERATOR V BELT Removal

5. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE





(a) Remove the bolt and disconnect the suction hose.

(b) Remove the O-ring from the suction hose.

NOTICE:
Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

6. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE





(a) Remove the bolt and disconnect the discharge hose.

(b) Remove the O-ring from the discharge hose.

NOTICE:
Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

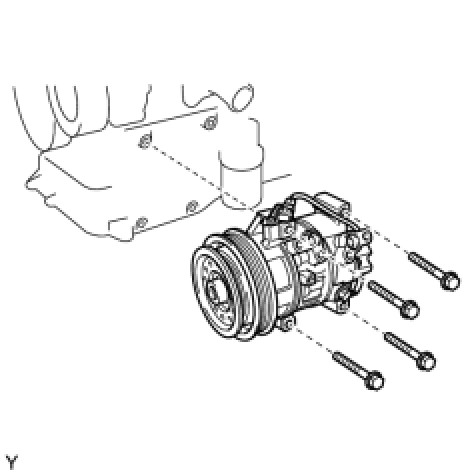

7. REMOVE COMPRESSOR AND PULLEY





(a) Disconnect the connector.

(b) Remove the 4 bolts and compressor.
