Installation
TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION 1.
INSTALL TIRE PRESSURE WARNING ECU
(a)

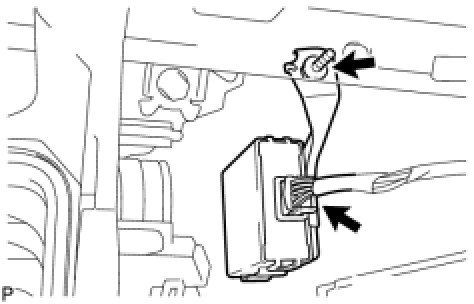

Install the tire pressure warning ECU with the screw.
(b)
Connect the tire pressure warning ECU connector.
2.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
Installation 3.
REGISTER TRANSMITTER ID
Programming and Relearning 4.
INSPECT TIRE PRESSURE WARNING SYSTEM
Test Mode Procedure
