Procedures
1GR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT

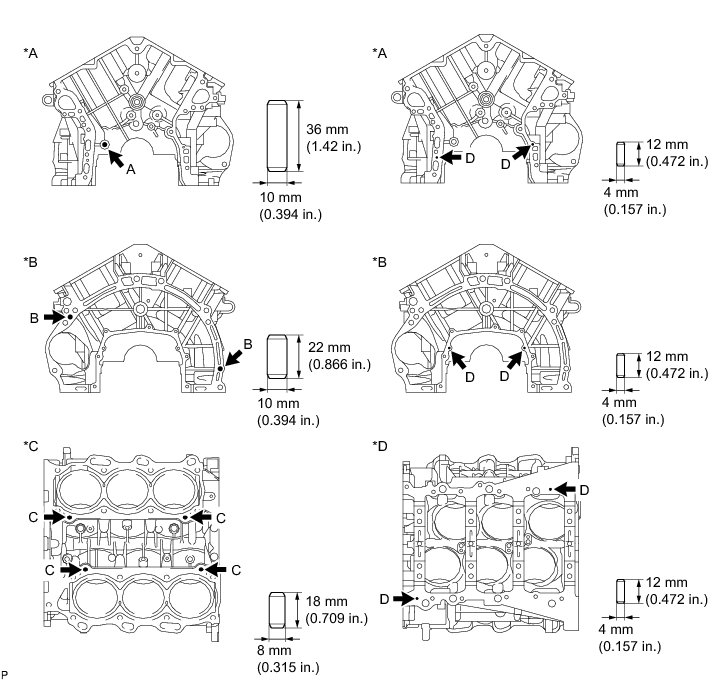

1. REPLACE STRAIGHT PIN
NOTICE:
It is not necessary to remove a straight pin unless it is being replaced.
Text in Illustration
(a) Remove the straight pins.
(b) Using a plastic-faced hammer, tap in new straight pins to the cylinder block.
Standard Protrusion Height:

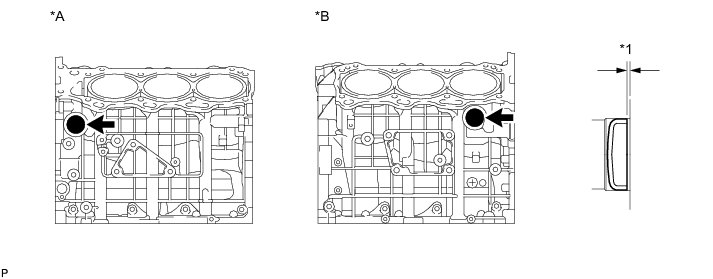

2. REPLACE CYLINDER BLOCK TIGHT PLUG
NOTICE:
If coolant leaks from a tight plug or a plug is corroded, replace it.
Text in Illustration
(a) Remove the tight plugs.
(b) Apply adhesive around new tight plugs.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
(c) Using SST and a hammer, tap in the tight plugs to the standard depth.
SST : 09950-60010
09951-00350
SST : 09950-70010
09951-07150
Standard depth:
0.2 to 1.2 mm (0.00787 to 0.0472 in.)
