Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY

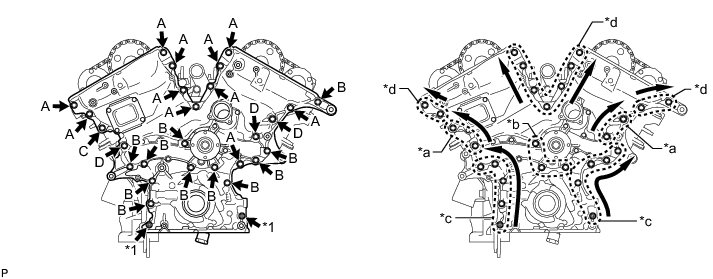

Install the timing chain cover with the 26 bolts, labeled A, B, C and D, and the 2 nuts. Tighten the bolts and nuts uniformly in several steps.

Standard Bolt










Text in Illustration






Make sure that there is no oil on the bolt threads.

Tighten the bolts in area 1.

Torque 47 Nm (479 kgf-cm, 35 ft-lbf)


Tighten the bolts in area 2.

Torque 23 Nm (235 kgf-cm, 17 ft-lbf)


Tighten the bolts in area 3.

Torque 23 Nm (235 kgf-cm, 17 ft-lbf)


Tighten the bolts in area 4.

Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
