Removal

WINDOW / GLASS: REAR POWER WINDOW SWITCH: REMOVAL

1. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL LH Disassembly

2. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

3. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH Disassembly

4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

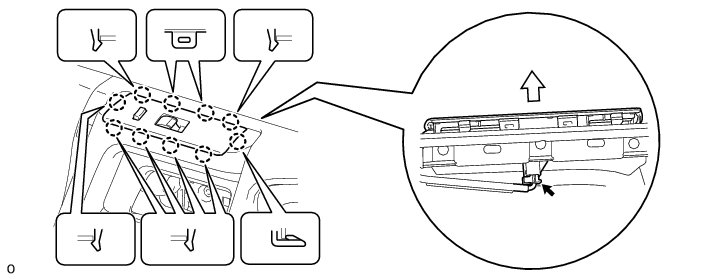

(a) Detach the 10 claws from the backside and remove the power window regulator switch with base panel.





(b) Disconnect the connector.

(c) Detach the 2 claws and remove the power window regulator switch.
