Headlamp Alignment Control Module: Testing and Inspection
LIGHTING: LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

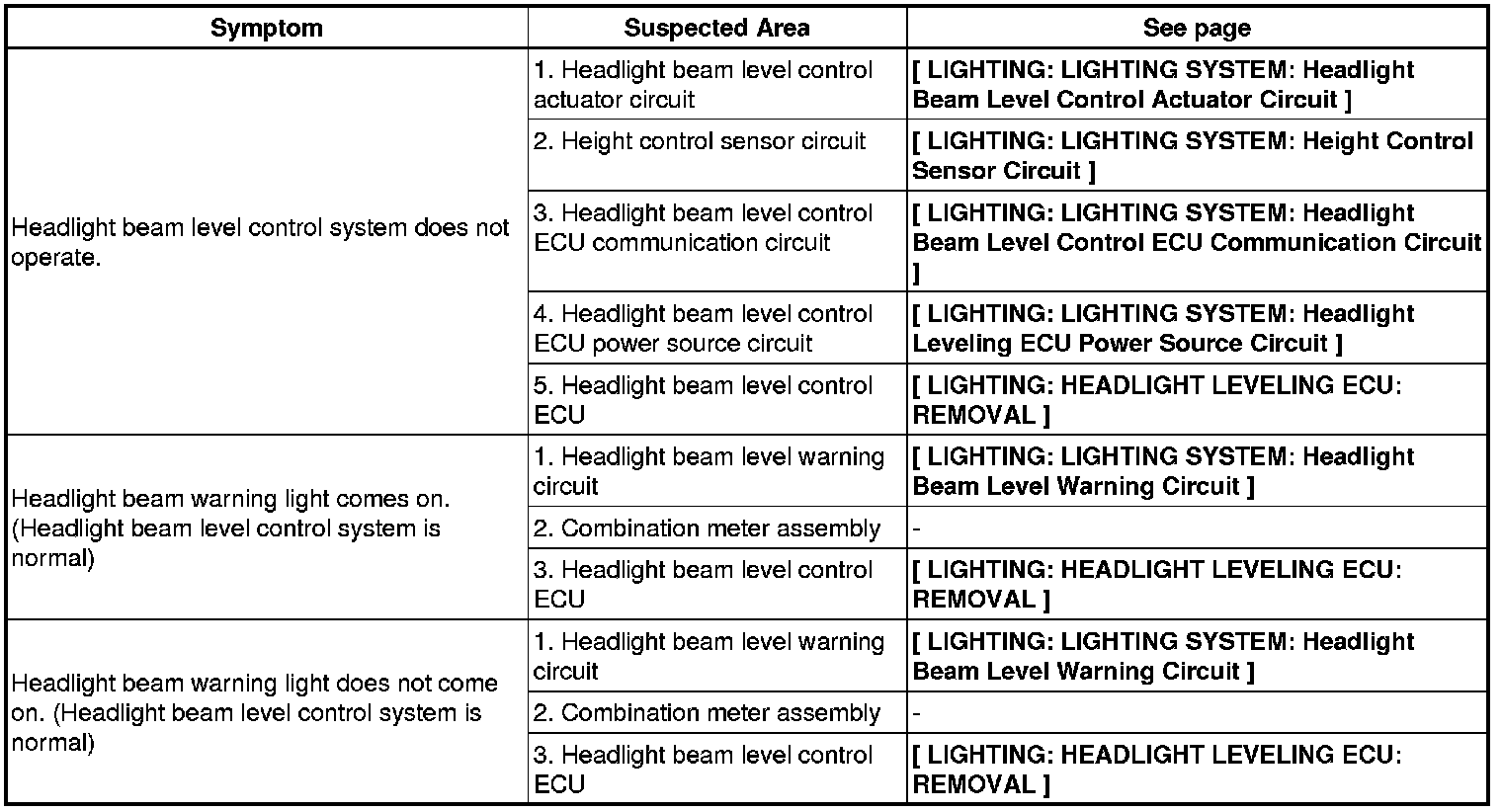

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting page.
HINT
Inspect the fuse and relay before confirming the suspected area in the table below.
Inspect each malfunction circuit in numerical order for the corresponding symptom.
If the malfunction still exists even after checking and confirming that all the circuits are normal, replace the ECU.
HEADLIGHT BEAM LEVEL CONTROL SYSTEM
