Power Mirror Switch: Testing and Inspection

MIRROR (EXT): OUTER MIRROR SWITCH: INSPECTION

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

(a) w/o Retract mirror

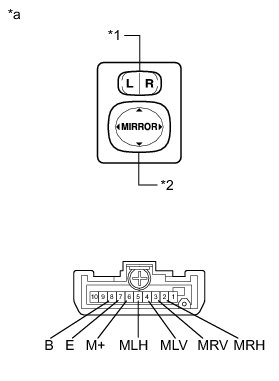

(1) Check the mirror select switch and mirror surface adjust switch.

(2) Turn the mirror select switch to the L position.

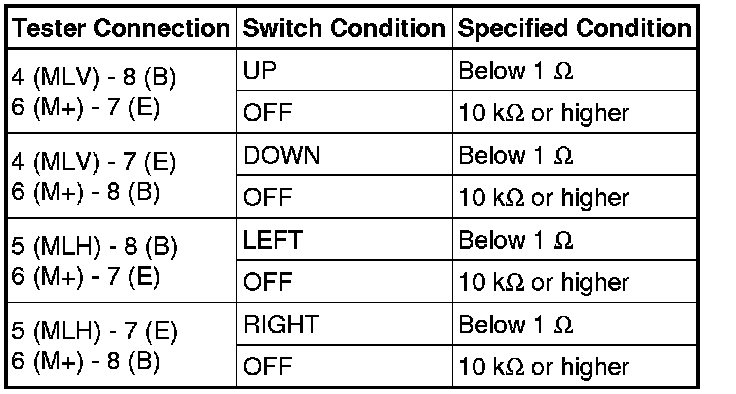

(3) Measure the resistance according to the value(s) in the table below.

Text in Illustration





Standard Resistance (for left side):





(4) Turn the mirror select switch to the R position.

(5) Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):





If the result is not as specified, replace the outer mirror switch assembly.

(b) w/ Retract mirror

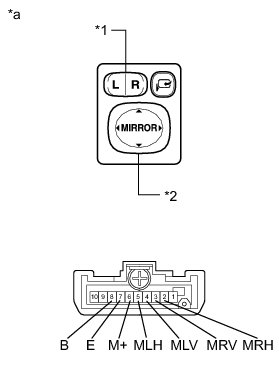

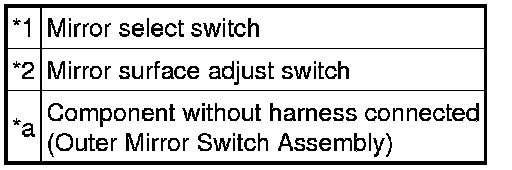

(1) Check the mirror select switch and mirror surface adjust switch.

(2) Turn the mirror select switch to the L position.





(3) Measure the resistance according to the value(s) in the table below.

Text in Illustration





Standard Resistance (for left side):





(4) Turn the mirror select switch to the R position.

(5) Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):





If the result is not as specified, replace the outer mirror switch assembly.

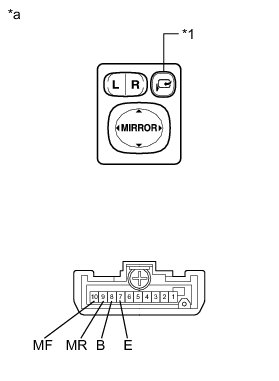

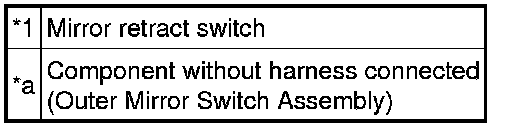

(c) Check the mirror retract switch.

(1) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.
