Reassembly
HEATING / AIR CONDITIONING: CONDENSER: REASSEMBLY
1. INSTALL COOLER DRYER
(a) Using pliers, install a new cooler dryer to the modulator.

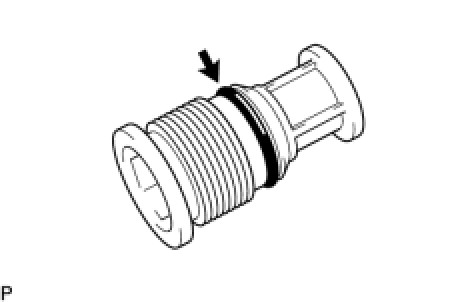

(b) Apply a sufficient amount of compressor oil to a new O-ring and the fitting surfaces of the cap.
Compressor oil:
ND-OIL 8 or equivalent
(c) Using a 14 mm straight hexagon wrench, install the cap to the modulator.
Text in Illustration
Torque : 2.9 Nm (30 kgf-cm, 26 in-lbf)
NOTICE:
* Keep the O-ring and O-ring fitting surfaces free from dirt or foreign matter.
* Do not use any compressor oil other than ND-OIL 8 or equivalent.
