Timing Component Alignment Marks: Locations

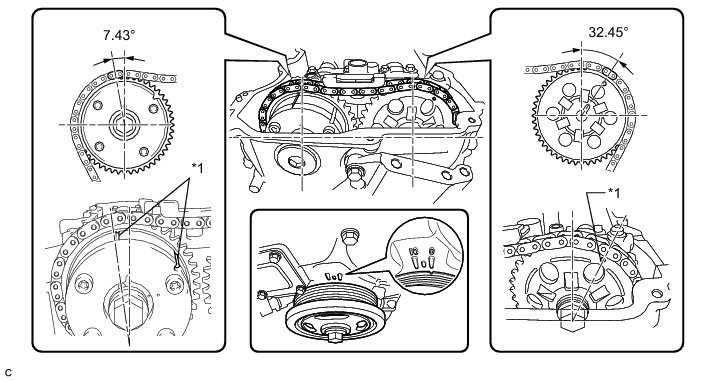

Timing Component Alignment MarksText in Illustration Turn the crankshaft pulley and align its groove with the "0" timing mark of the timing chain cover.
Check that the timing marks of the camshaft timing gear assembly and camshaft timing sprocket are at the positions shown in the illustration.
HINT If the timing marks are not as shown, turn the crankshaft one revolution clockwise.
