Removal





2GR-FE ENGINE CONTROL: CAMSHAFT OIL CONTROL VALVE: REMOVAL

1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

Removal.

2. DISCONNECT ENGINE WIRE

(a) Disconnect the 3 wire harness clamps.

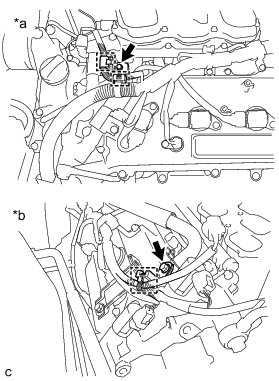

Text in Illustration





(b) Remove the 2 bolts and 2 wire harness brackets.

3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

(a) Disconnect the 4 oil control valve connectors.

(b) Remove the 4 bolts and 4 oil control valves.

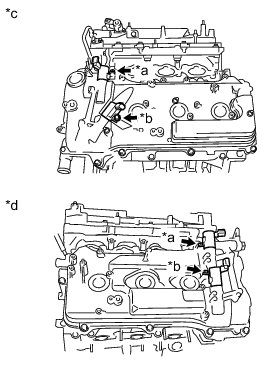

Text in Illustration





(c) Remove the O-ring from each oil control valve.





Text in Illustration
