Transmission Temperature Sensor/Switch: Testing and Inspection

U660E AUTOMATIC TRANSMISSION / TRANSAXLE: ATF TEMPERATURE SENSOR: INSPECTION

1. INSPECT ATF TEMPERATURE SENSOR ASSEMBLY

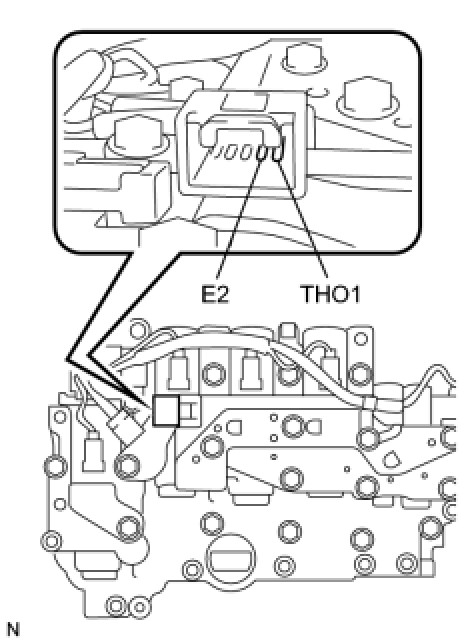

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

If the resistance is out of the specified range with the ATF temperature shown in the preceding table, replace the ATF temperature sensor assembly. Otherwise, the driveability of the vehicle may decrease.
