Installation





EXTERIOR: SIDE STEP: INSTALLATION

HINT
The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

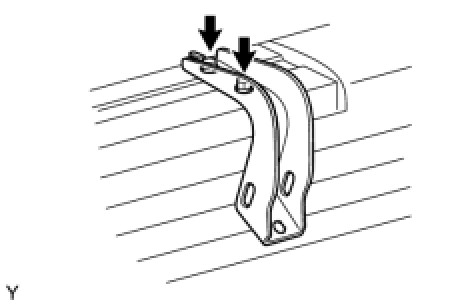

1. INSTALL NO. 3 SIDE STEP BRACKET

(a) Install the No. 3 side step bracket with the 2 bolts.





Torque : 12.5 Nm (125 kgf-cm, 9 ft-lbf)

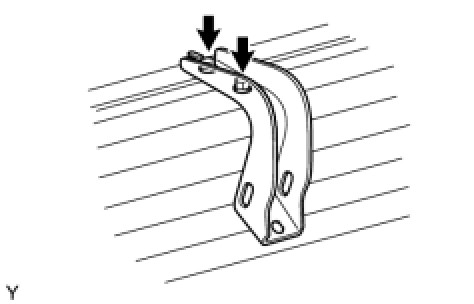

2. INSTALL NO. 2 SIDE STEP BRACKET

(a) Install the No. 2 side step bracket with the 2 bolts.





Torque : 12.5 Nm (125 kgf-cm, 9 ft-lbf)

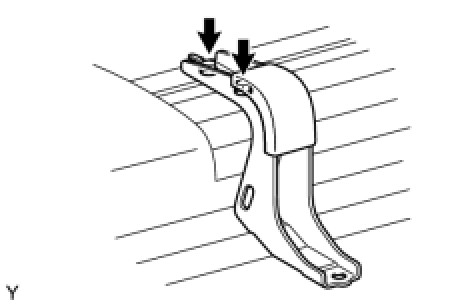

3. INSTALL NO. 1 SIDE STEP BRACKET

(a) Install the No. 1 side step bracket with the 2 bolts.





Torque : 12.5 Nm (125 kgf-cm, 9 ft-lbf)

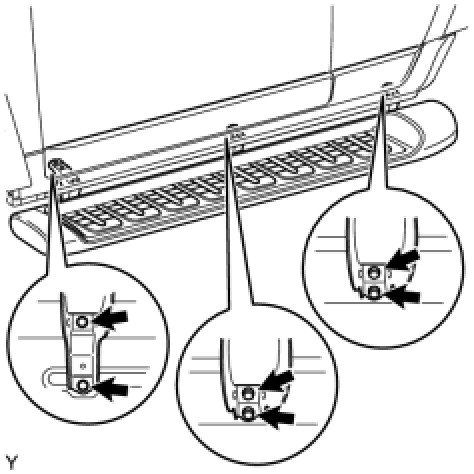

4. INSTALL SIDE STEP SUB-ASSEMBLY

(a) Install the step with 6 bolts.





Torque : 20 Nm (200 kgf-cm, 14 ft-lbf)
