Inspection

DOOR LOCK: BACK DOOR LOCK: INSPECTION

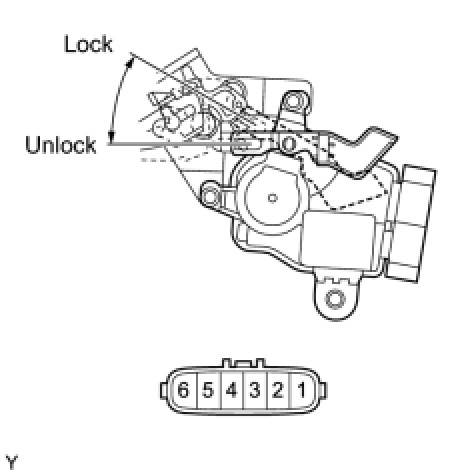

1. INSPECT BACK DOOR LOCK

(a) Check the operation of the back door lock actuator.





(1) Apply battery voltage to the back door lock actuator and check the operation of the back door lock motor.

Standard:





If the result is not as specified, replace the back door lock.

(b) Check the resistance of the door lock and unlock switch.

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the back door lock.

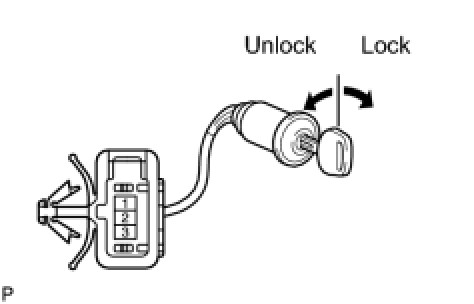

2. INSPECT BACK DOOR LOCK CYLINDER





(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance between the terminals when the cylinder is operated with a key.

Standard Resistance:





If the result is not as specified, replace the back door lock cylinder.
