Installation
MIRROR: OUTER MIRROR SWITCH: INSTALLATION 1.

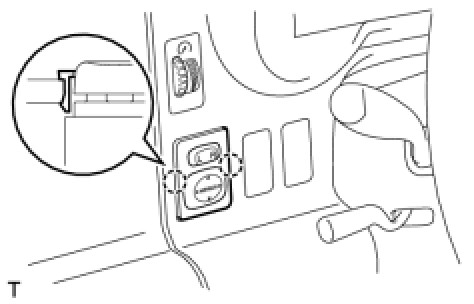

INSTALL OUTER MIRROR SWITCH
(a)
Connect the connector.
(b)
Engage the 2 claws and install the outer mirror switch.
2.

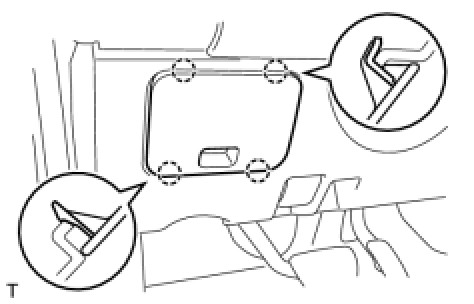

INSTALL FUSE BOX OPENING COVER
(a)
Engage the 4 claws and install the fuse box opening cover.
3.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque : 3.9 Nm (40 kgf-cm, 35 in-lbf)
