Installation





BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

1. PRECAUTION

Service Precautions

2. INSTALL STEERING ANGLE SENSOR

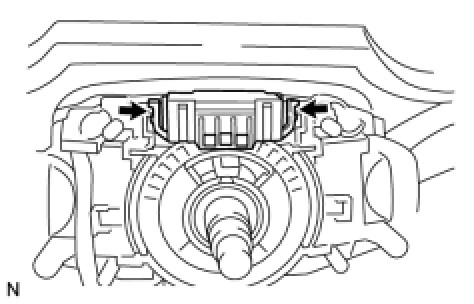

(a) Install the steering angle sensor.

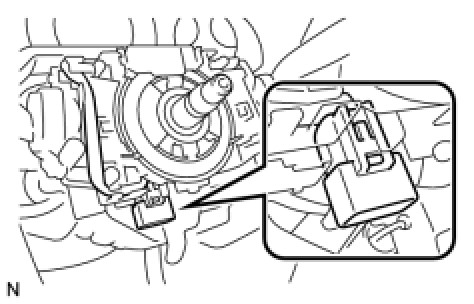

(b) Connect the harness and steering angle sensor connector.





(c) Connect the steering sensor connector.

3. INSTALL SPIRAL CABLE Installation

4. INSTALL UPPER STEERING COLUMN COVER Installation

5. INSTALL LOWER STEERING COLUMN COVER Installation

6. ADJUST SPIRAL CABLE Installation

7. INSTALL STEERING WHEEL ASSEMBLY Installation

8. INSPECT STEERING WHEEL CENTER POINT

9. INSTALL STEERING PAD Installation

10. INSTALL STEERING WHEEL COVER LOWER NO.2 Installation

11. INSTALL STEERING WHEEL COVER LOWER NO.3 Installation

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 3.9 Nm (40 kgf-cm, 35 in-lbf)

13. INSPECT STEERING PAD Installation

14. PERFORM INITIALIZATION

Repair Instruction - Initialization

15. INSPECT SRS WARNING LIGHT

Diagnosis System
