Procedures
1GR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT

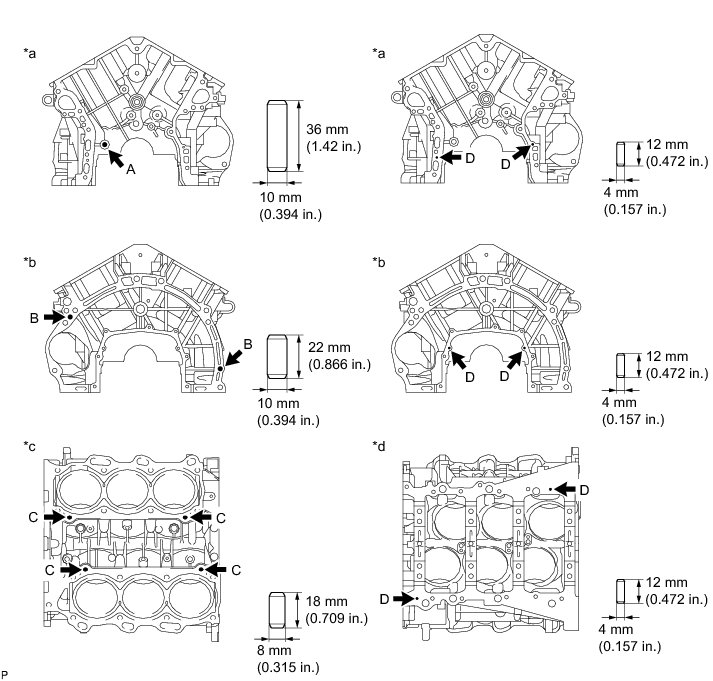

1. REPLACE STRAIGHT PIN
HINT
It is not necessary to remove a straight pin unless it is being replaced.
(a) Remove the straight pins.
(b) Using a plastic-faced hammer, tap in new straight pins to the cylinder block.
Text in Illustration
Standard Protrusion Height:

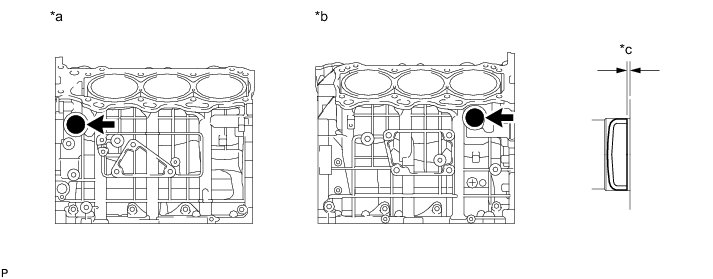

2. REPLACE TIGHT PLUG
HINT
If coolant leaks from the tight plug or the plug is corroded, replace it.
(a) Remove the tight plugs.
(b) Apply adhesive around new tight plugs.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
(c) Using SST and a hammer, tap in the tight plugs to the standard depth.
Text in Illustration
SST : 09950-60010
09951-00350
SST : 09950-70010
09951-07150
Standard depth:
0.2 to 1.2 mm (0.00787 to 0.0472 in.)
