Installation





TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

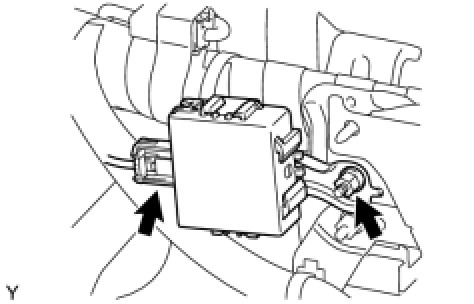

(a) Install the tire pressure warning ECU with the nut.





Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)

(b) Connect the tire pressure warning ECU connector.

2. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH Installation

3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

4. REGISTRATION TRANSMITTED ID

Registration

5. INSPECT TIRE PRESSURE WARNING SYSTEM
