Installation

OTHER SYSTEM: INVERTER MAIN SWITCH: INSTALLATION

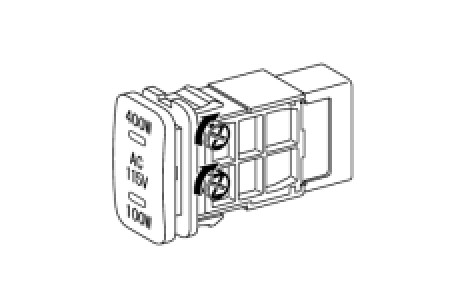

1. INSTALL INVERTER MAIN SWITCH BULB

(a) Turn the inverter main switch bulb, in the direction indicated by the arrow in the illustration, to install it.

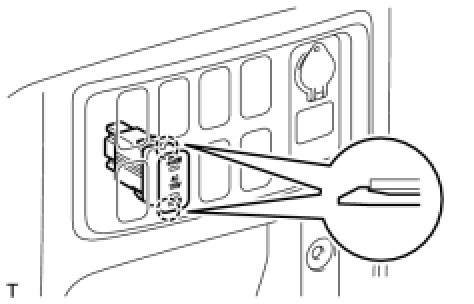

2. INSTALL INVERTER MAIN SWITCH

(a) Engage the 2 clips and install the inverter main switch.





3. INSTALL INSTRUMENT LOWER COVER SUB-ASSEMBLY Installation

4. INSTALL CONSOLE BOX ASSEMBLY REAR Installation

5. INSTALL BOX BOTTOM MAT Installation

6. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Installation

7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for 4WD) Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Installation

9. INSTALL PARKING BRAKE HOLE COVER SUB-ASSEMBLY Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 3.9 Nm (40 kgf-cm, 35 in-lbf)
