Radio, Stereo, and Compact Disc





SERVICE SPECIFICATIONS: AUDIO / VISUAL: SERVICE DATA

FRONT NO. 1 SPEAKER (except 10 Speakers):





FRONT NO. 1 SPEAKER (for 10 Speakers):





FRONT NO. 2 SPEAKER (except 10 Speakers):





FRONT NO. 2 SPEAKER (for 10 Speakers):





REAR SPEAKER:





ROOF SPEAKER:

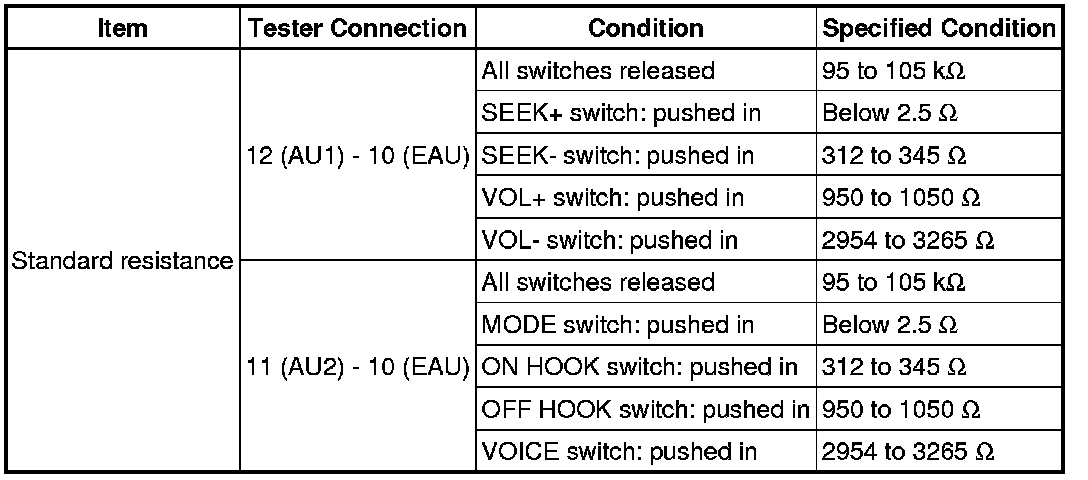

STEERING PAD SWITCH:
