Installation
A750E AUTOMATIC TRANSMISSION: SPEED SENSOR: INSTALLATION 1.
INSTALL TRANSMISSION REVOLUTION SENSOR
(a)

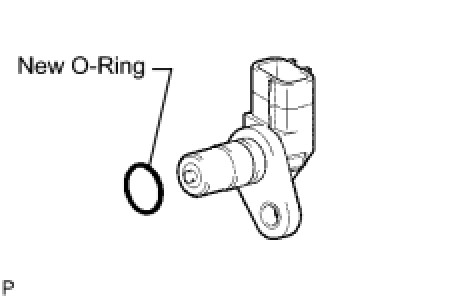

Coat 2 new O-rings with Toyota Genuine ATF WS or equivalent and install one onto each transmission revolution sensor.
(b)

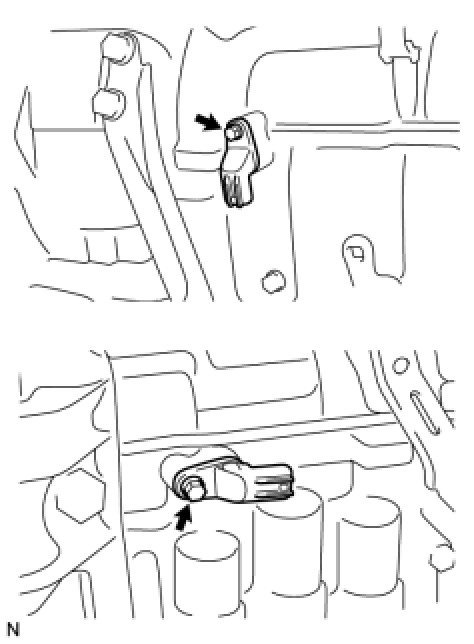

Install the 2 transmission revolution sensors with the 2 bolts.
Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf) (c)
Connect the 2 sensor connectors.
