Liftgate Window Glass: Adjustments
WINDSHIELD / WINDOW GLASS: BACK DOOR GLASS: ADJUSTMENT 1.

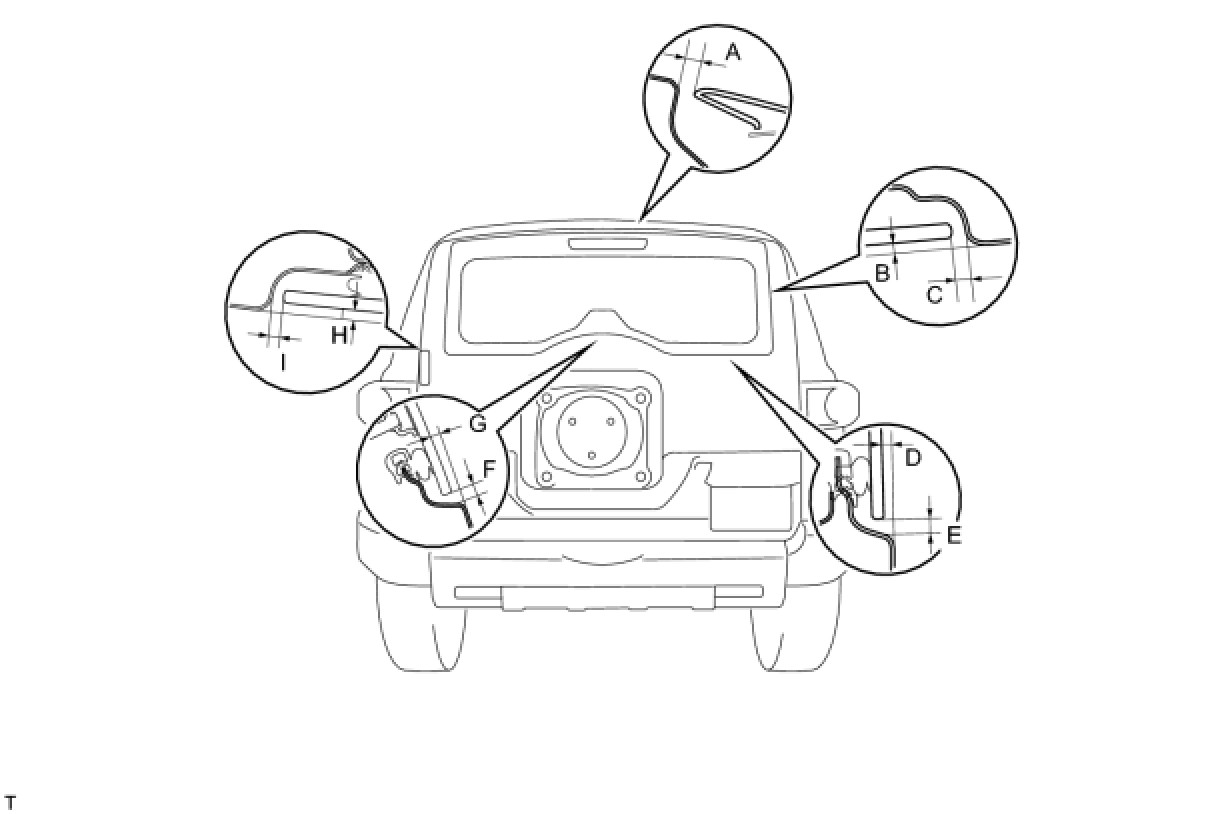

INSPECT BACK DOOR GLASS
(a)
Check that the clearance measurements are within the standard ranges.
Standard: 2.
ADJUST BACK DOOR GLASS
(a)

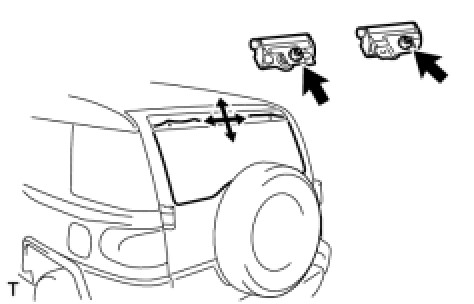

Adjust the glass position.
(1)
Loosen the glass side hinge nuts and adjust the glass position.
(2)
Tighten the glass side hinge nuts after the adjustment.
Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)
