Installation





NAVIGATION: NAVIGATION RECEIVER: INSTALLATION

1. INSTALL NAVIGATION RECEIVER ASSEMBLY

2. INSTALL NO. 2 RADIO BRACKET

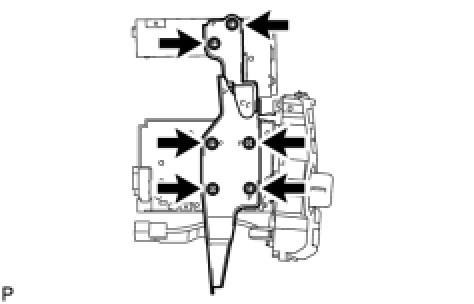

(a) Install the No. 2 radio bracket with the 6 screws.





3. INSTALL NO. 1 RADIO BRACKET

(a) Install the No. 1 radio bracket with the 6 screws.

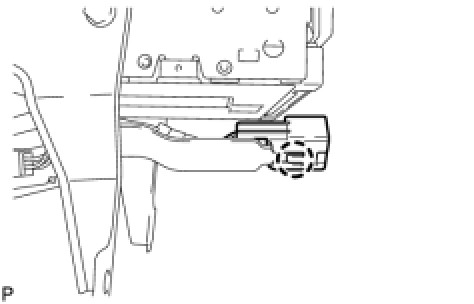

(b) Engage the claw and connect the connector.





4. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

(a) Connect each connector.

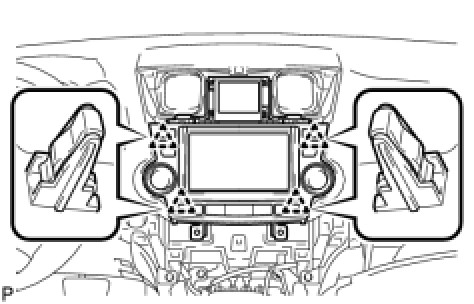

(b) Engage the 4 clips.





(c) Install the navigation receiver assembly with bracket with the 4 bolts.





5. INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY (for Manual Air Conditioning System) Installation

6. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System) Installation

7. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System) Installation

8. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System) Installation

9. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Installation
