Installation

EXTERIOR: FENDER LINER (for Front Side): INSTALLATION

1. INSTALL FRONT FENDER LINER LH

(a) Install the front fender liner LH with the 5 clips and 8 screws.





(b) Install the bolt.

(c) Install 3 new grommets.





(d) Using a 4 mm hexagon wrench, install the 2 screws.

(e) Install the screw and 2 pin hold clips.





Text in Illustration





NOTICE:
Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is aligned vertically.

2. INSTALL FRONT FENDER LINER RH

(a) Install the front fender liner RH with the 5 clips and 8 screws.





(b) Install the bolt.

(c) Install 3 new grommets.





(d) Using a 4 mm hexagon wrench, install the 2 screws.

(e) Install the screw and pin hold clip.





Text in Illustration





NOTICE:
Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is aligned vertically.

3. INSTALL FRONT WHEEL OPENING EXTENSION PAD (for LH Side)

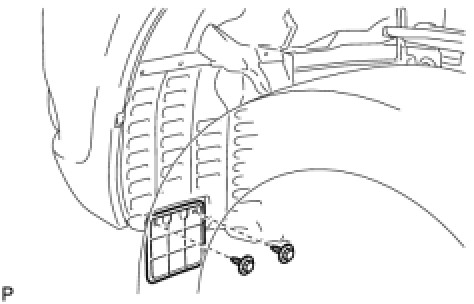

(a) Install the front wheel opening extension pad with the 2 screws.





4. INSTALL FRONT WHEEL OPENING EXTENSION PAD (for RH Side)

HINT
Use the same procedure as for the LH side.

5. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY LH Installation

6. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY RH

HINT
Use the same procedure as for the LH side.
