Installation





BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

1. INSTALL STEERING ANGLE SENSOR

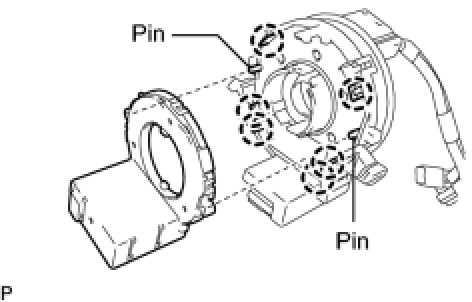

(a) Align the 2 locating pins, engage the 6 claws, and install the steering angle sensor to the spiral cable.





2. INSTALL SPIRAL CABLE WITH STEERING ANGLE SENSOR Installation

3. INSTALL STEERING COLUMN COVER Installation

4. ADJUST SPIRAL CABLE Installation

5. INSTALL STEERING WHEEL ASSEMBLY Installation

6. INSPECT STEERING WHEEL CENTER POINT

7. INSTALL STEERING PAD Installation

8. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

9. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

10. INSPECT STEERING PAD Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

CAUTION:
* When reconnecting the cable to the negative (-) battery terminal after installing the steering sensor, check that the front tires and steering wheel are kept aligned straight ahead before and after connecting the cable to the negative (-) battery terminal.
* When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Repair Instruction - Initialization
12. INSPECT SRS WARNING LIGHT

Diagnosis System
