Installation





BRAKE CONTROL: REAR SPEED SENSOR (for 2WD): INSTALLATION

HINT
* Use the same procedure for the RH side and LH side.
* The following procedure is for the LH side.
* The rear speed sensor is a component of the rear axle hub and bearing assembly. If the sensor malfunctions, replace the rear axle hub and bearing assembly.
* If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.

1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY

(a) Install the rear axle hub and bearing assembly Installation.

HINT
* The rear speed sensor is a component of the rear axle hub and bearing assembly. If the sensor malfunctions, replace the rear axle hub and bearing assembly.
* If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.

2. INSPECT REAR AXLE HUB BEARING LOOSENESS Rear Axle Hub

3. INSPECT REAR AXLE HUB RUNOUT Rear Axle Hub

4. INSTALL REAR DISC Reassembly

5. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Replacement

6. INSTALL REAR SPEED SENSOR WIRE

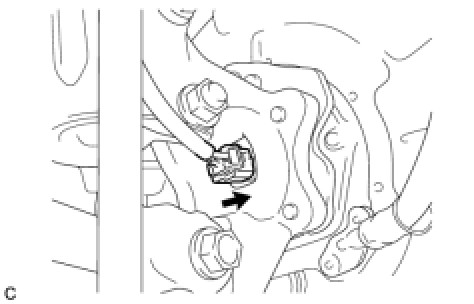

(a) Connect the connector to the rear speed sensor.





7. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Rear Wheel Alignment

10. CHECK FOR SPEED SENSOR SIGNAL

Test Mode Procedure
