Reassembly





AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

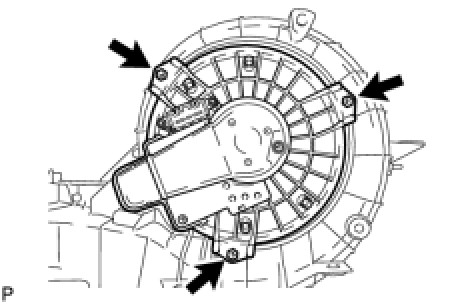

1. INSTALL FRONT BLOWER MOTOR SUB-ASSEMBLY

(a) Install the front blower motor sub-assembly with the 3 screws.

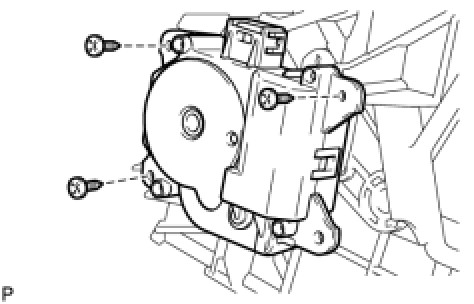

2. INSTALL AIR INLET SERVO MOTOR SUB-ASSEMBLY

(a) Install the air inlet servo sub-assembly with the 3 screws.





3. INSTALL CLEAN AIR FILTER

(a) Install the clean air filter as shown in the illustration.

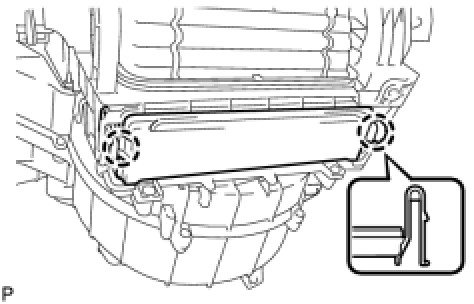

4. INSTALL AIR FILTER CASE

(a) Engage the 2 claws to install the air filter case.





5. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY

(a) Engage the 4 claws to install the No. 1 air duct subassembly.





6. INSTALL NO. 1 COOLER THERMISTOR Reassembly

7. INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY Reassembly

8. INSTALL COOLER EXPANSION VALVE Reassembly
