Removal
1AR-FE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: REMOVAL 1.
REMOVE FRONT FLOOR COVER LH
Removal 2.
REMOVE HEATED OXYGEN SENSOR
(a)
Disconnect the heated oxygen sensor connector.
(b)
Separate the 2 wire harness clamps.
(c)

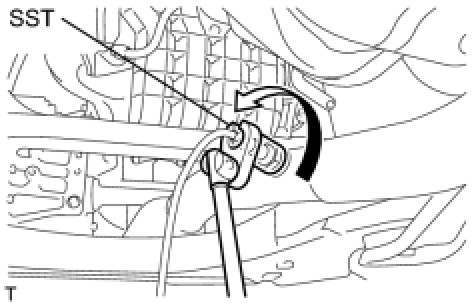

Using SST, remove the heated oxygen sensor from the front exhaust pipe.
SST : 09224-00010
