Axle Nut
INSTALL FRONT AXLE HUB NUT
(a)
Clean the threaded parts on the drive shaft and a new axle hub nut using a non-residue solvent.
HINT * Be sure to perform this work for a new drive shaft. * Keep the threaded parts free of oil and foreign objects. (b)
Using a socket wrench (30 mm), install the new axle hub nut.
Torque : 294 Nm (2996 kgf-cm, 216 ft-lbf) (c)

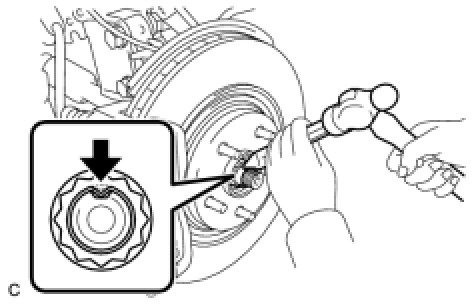

Using a chisel and hammer, stake the front axle hub nut.
