Wiper and Washer Systems: Testing and Inspection

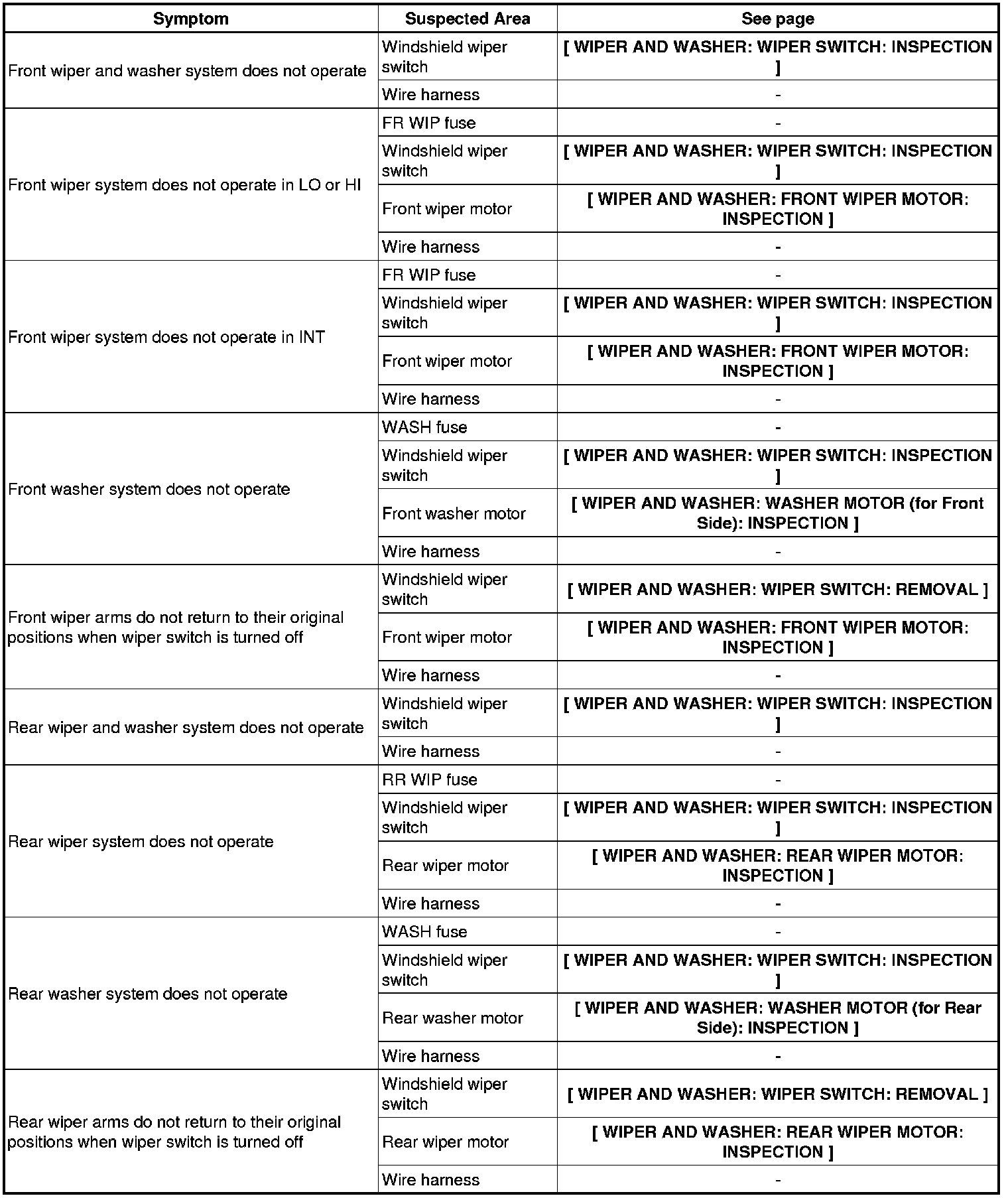

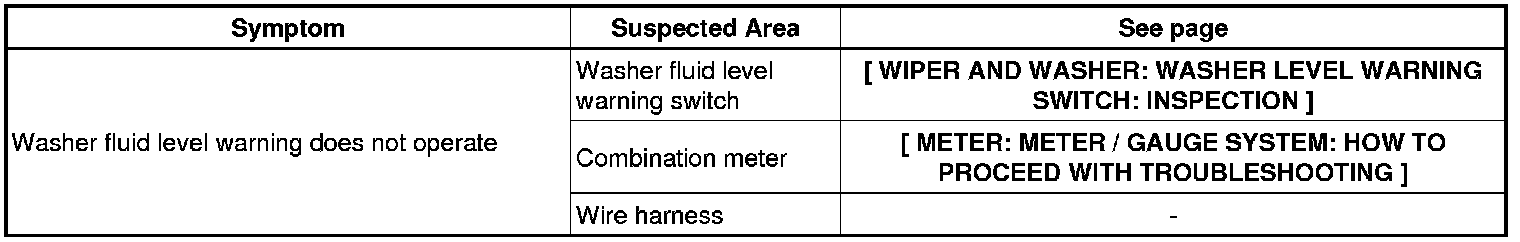

WIPER AND WASHER: WIPER AND WASHER SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
* Use the table below to help determine the cause of a problem. The likely causes of the problem are indicated in descending order. Check each suspected area in order. Repair or replace faulty parts or perform adjustments as necessary.
* Inspect the fuses and relays related to this system before inspecting the suspected areas below.

Wiper and washer system
