Removal

WIPER AND WASHER: WASHER LEVEL WARNING SWITCH: REMOVAL

1. REMOVE ENGINE UNDER COVER ASSEMBLY (for 2GR-FE) Removal

2. REMOVE NO. 1 ENGINE UNDER COVER

3. REMOVE COOL AIR INTAKE DUCT SEAL Removal

4. REMOVE RADIATOR GRILLE Removal

5. REMOVE FRONT BUMPER ASSEMBLY Removal

6. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH Removal

7. REMOVE FRONT FENDER LINER RH Removal

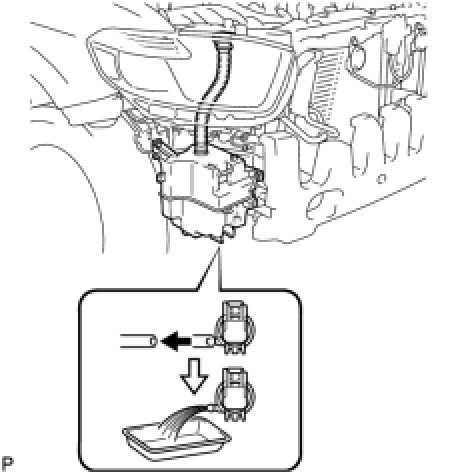

8. DRAIN WASHER FLUID

(a) Disconnect the washer hose from the front washer motor and pump assembly, and drain the washer fluid.





9. REMOVE LEVEL WARNING SWITCH ASSEMBLY

(a) Disconnect the connector.





(b) Remove the level warning switch assembly.
