Installation

2GR-FE STARTING: STARTER: INSTALLATION

1. INSTALL STARTER ASSEMBLY

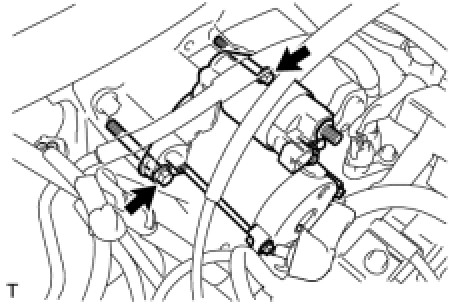

(a) Install the starter assembly with the 2 bolts.





Torque : 37 Nm (377 kgf-cm, 27 ft-lbf)

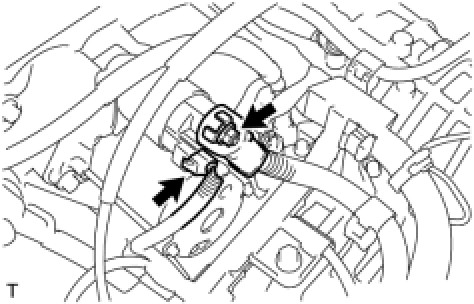

(b) Connect the starter connector.





(c) Connect the starter wire with the nut and cover the nut with the cap.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

2. INSTALL AIR CLEANER BRACKET

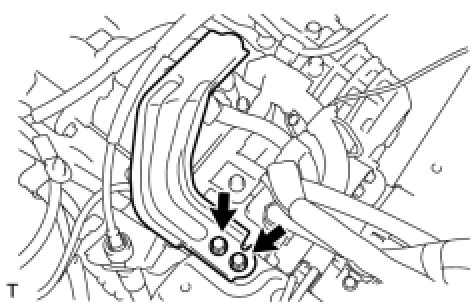

(a) Install the bracket with the 2 bolts.





Torque : 12 Nm (120 kgf-cm, 9 ft-lbf)

3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

5. INSTALL NO. 1 AIR CLEANER INLET Installation

6. INSTALL NO. 2 AIR CLEANER INLET Installation

7. INSTALL BATTERY Installation

8. INSTALL COOL AIR INTAKE DUCT SEAL Installation
