Downhill Assist Control Switch

BRAKE CONTROL: DOWNHILL ASSIST CONTROL SWITCH (for 4WD): INSPECTION

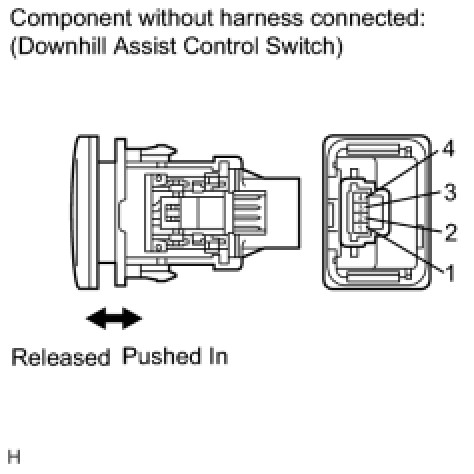

1. INSPECT DOWNHILL ASSIST CONTROL SWITCH

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:









If the result is not as specified, replace the downhill assist control switch.

(b) Check the illumination operation.

(1) Connect a battery positive (+) lead to terminal 3 and negative (-) lead to terminal 2. Then check that the bulb in the switch illuminates.

OK:

Bulb illuminates.

If the result is not as specified, replace the downhill assist control switch.
