Programming and Relearning





LIGHTING: LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
* Be sure to record the current value before customizing.
* Before troubleshooting the lighting system, pay attention because there is a possibility that a function has been disabled by customizing. (Example: If "The wireless operation does not function", check that the wireless operation has not been disabled by customizing, and then perform the troubleshooting.)

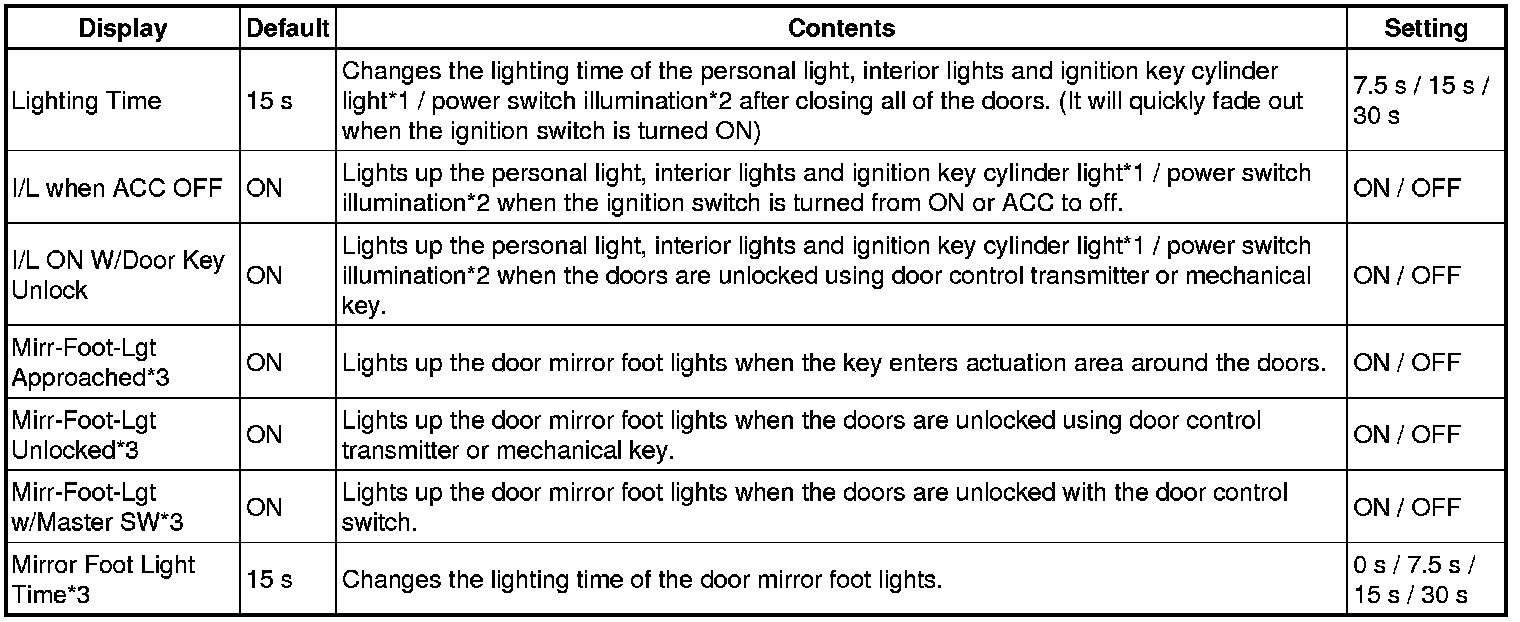

Illuminated Entry:





* *1: w/o Smart Key System

* *2: w/ Smart Key System

* *3: w/ Door Mirror Foot Light

Light Control:





* *4: w/ Daytime Running Light
