System Diagram





CAN COMMUNICATION: CAN COMMUNICATION SYSTEM (w/ Smart Key System): SYSTEM DIAGRAM

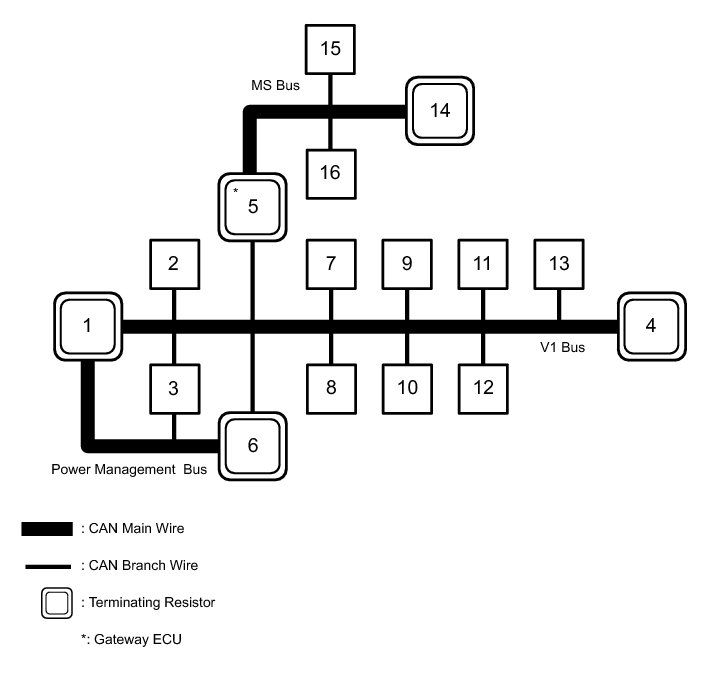

1. SYSTEM DIAGRAM









* *1: w/ Navigation System

* *2: w/ Power Back Door System

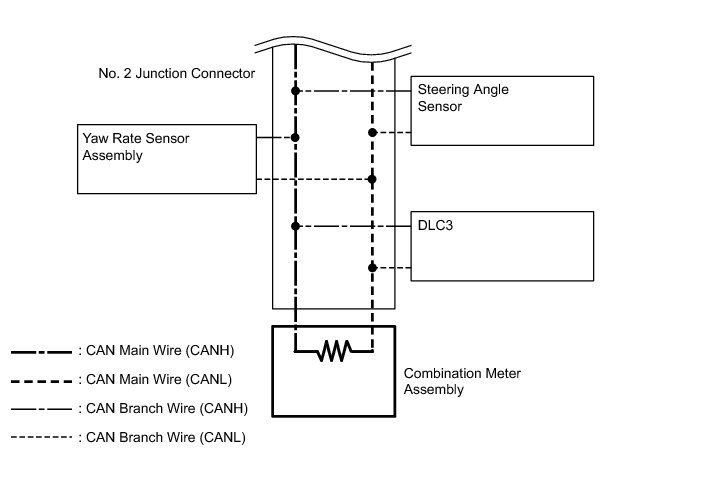

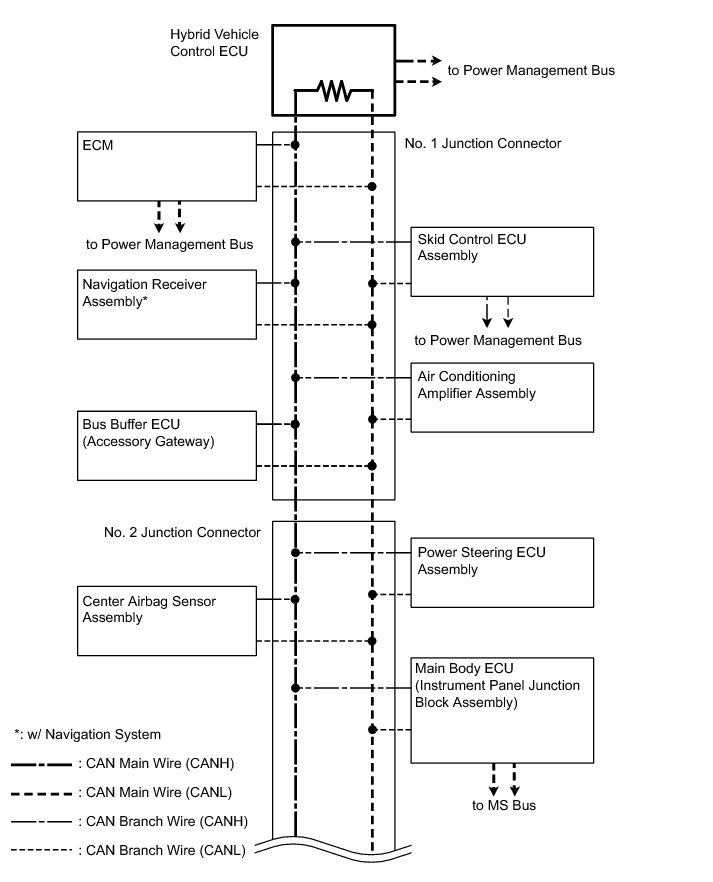

2. V1 BUS

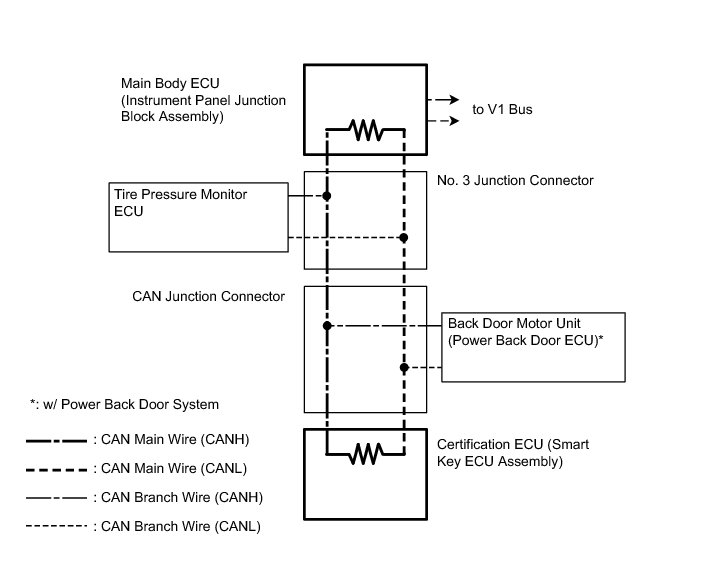

3. MS BUS

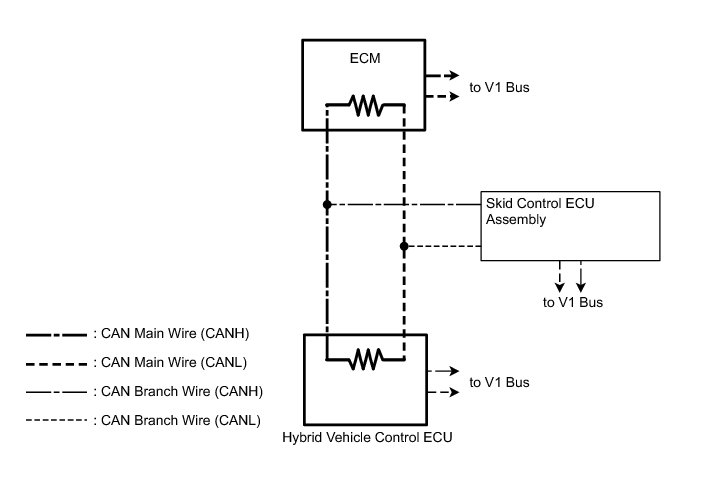

4. POWER MANAGEMENT CONTROL BUS
