CAN COMMUNICATION: CAN COMMUNICATION SYSTEM (w/ Smart Key System): Hybrid Vehicle Control ECU Communication Stop Mode
- Hybrid Vehicle Control ECU Communication Stop Mode

DESCRIPTION

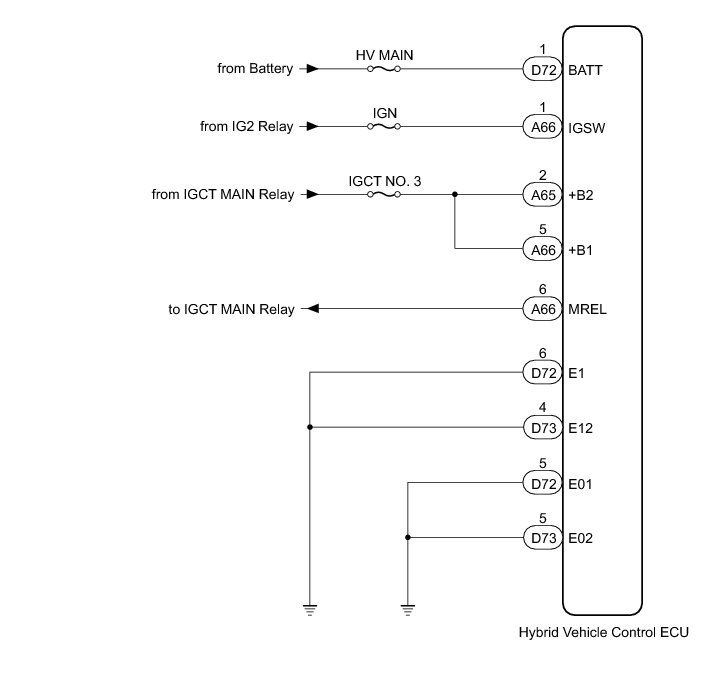

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATTERY AND BODY GROUND)

(a) Disconnect the A65, A66, D72 and D73 hybrid vehicle control ECU connectors.

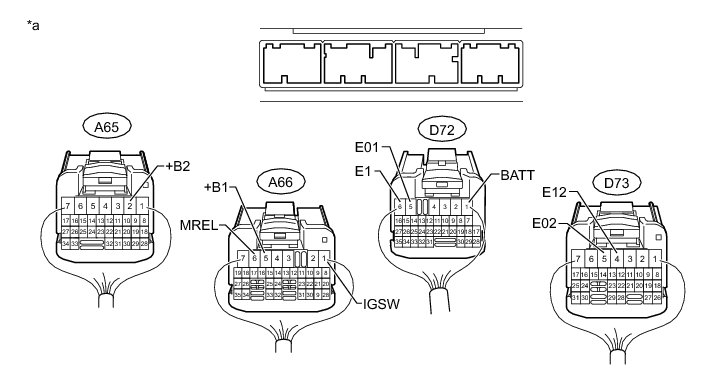

Text in Illustration





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE HYBRID VEHICLE CONTROL ECU Removal
