Removal





BRAKE CONTROL: SKID CONTROL ECU: REMOVAL

NOTICE:
While the battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the battery is connected.

1. REMOVE FRONT DOOR SCUFF PLATE RH Removal

2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH Removal

3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

4. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY Removal

5. REMOVE SKID CONTROL ECU

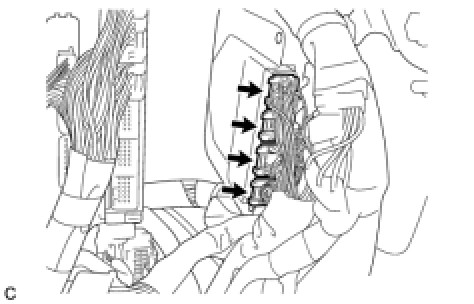

(a) Disconnect the 4 connectors from the skid control ECU.

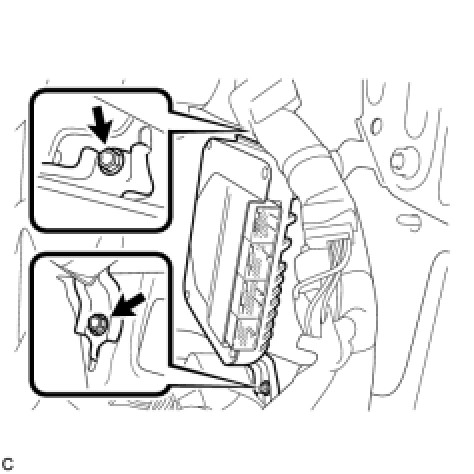

(b) Remove the 2 bolts and skid control ECU.
