Repair Instruction - Initialization
INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION 1.
PROCEDURES NECESSARY WHEN
BATTERY TERMINAL IS DISCONNECTED/RECONNECTED
NOTICE: It may not be possible to release the steering lock or start the engine when the battery voltage is low. If this occurs, initialization of the steering lock system is required. Programming and Relearning 2.

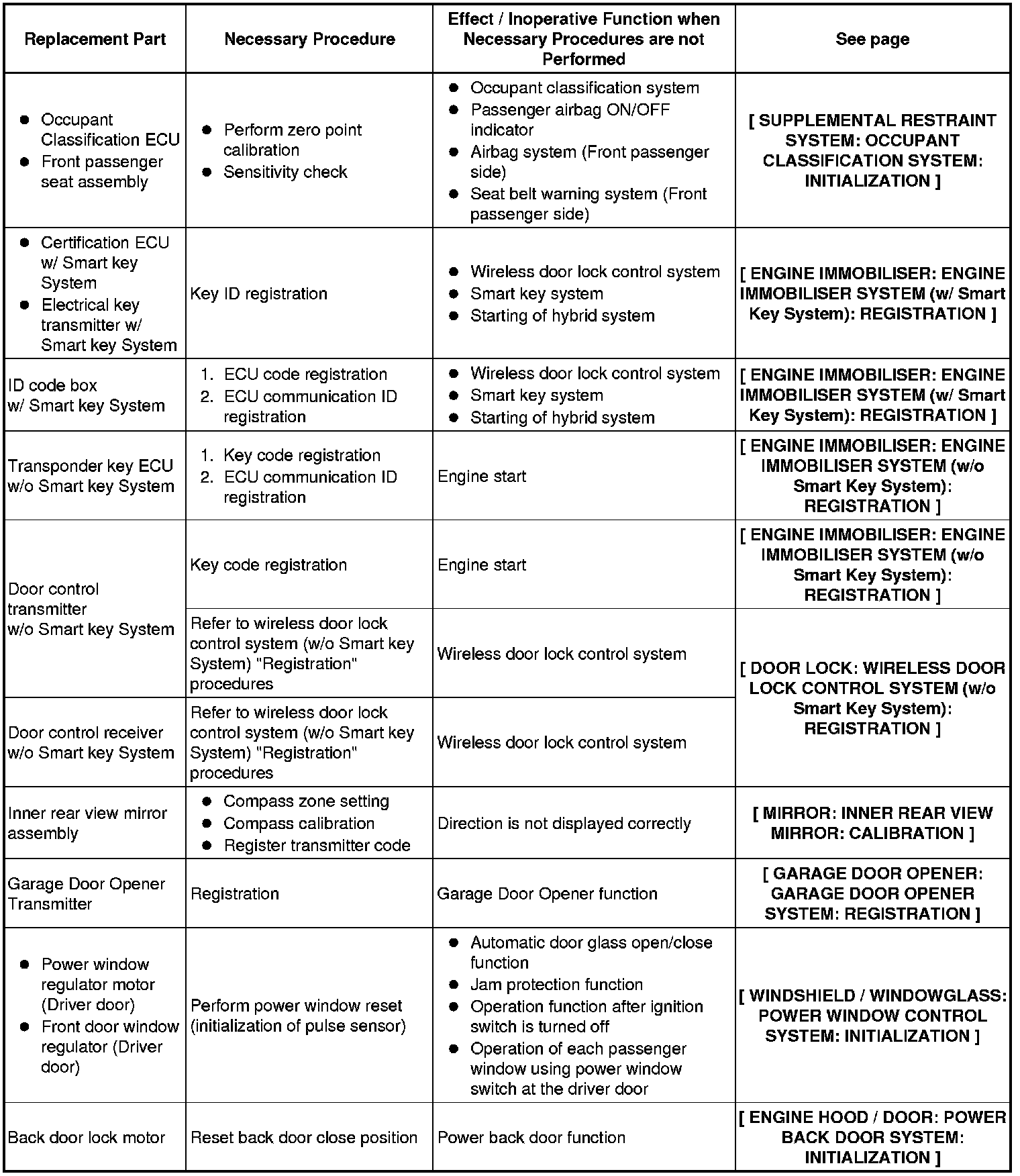

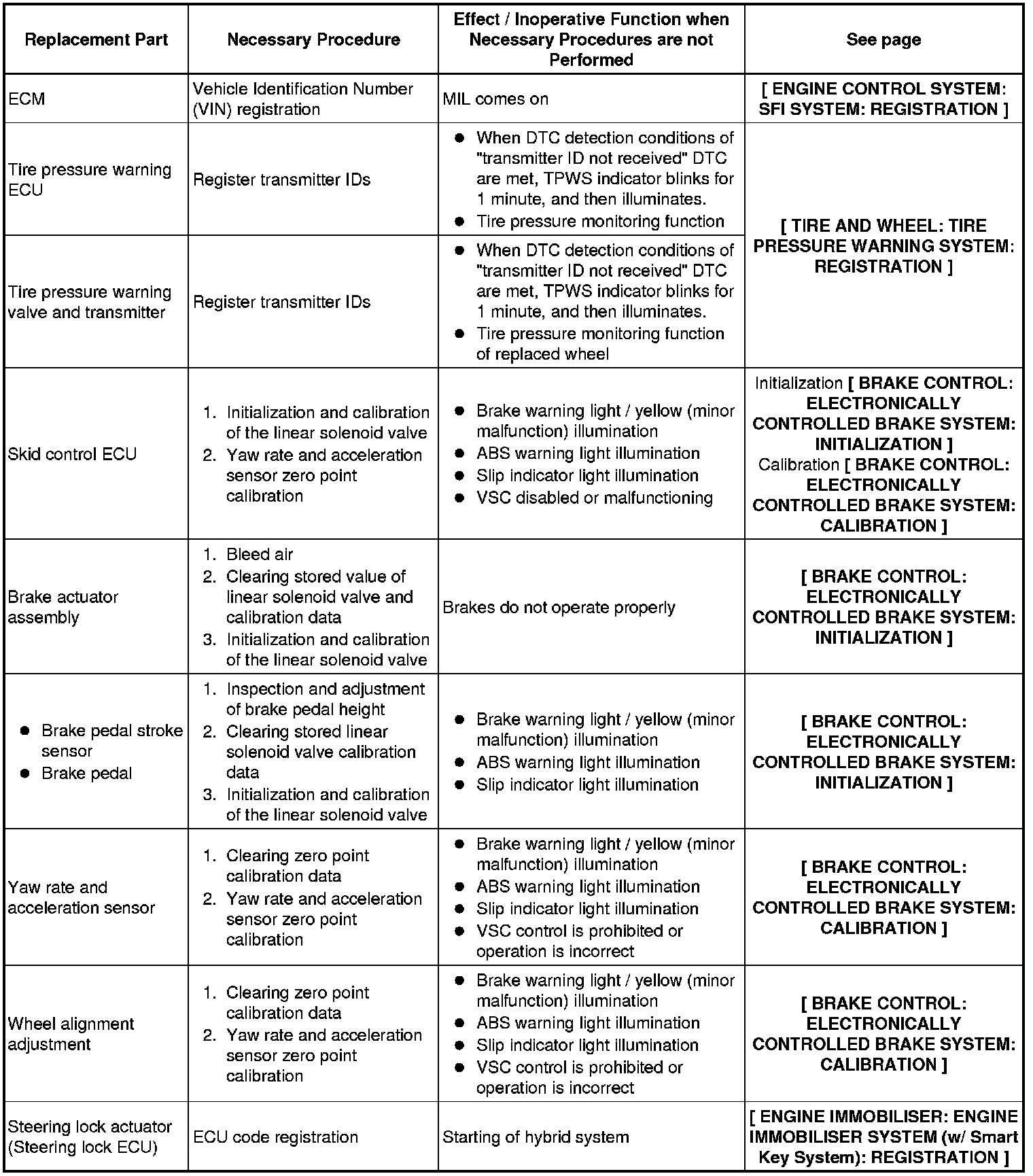

PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED
