Disassembly
BRAKE SYSTEM (OTHER): BRAKE PEDAL: DISASSEMBLY 1.
REMOVE BRAKE PEDAL SUB-ASSEMBLY
(a)

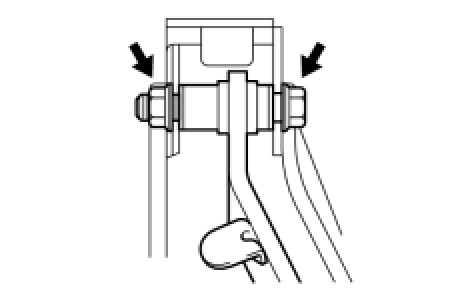

Remove the bolt and nut.
(b)
Remove the brake pedal sub-assembly from the brake pedal support sub-assembly.
2.
REMOVE BRAKE PEDAL BUSHING
(a)
Remove the 2 brake pedal bushings from the brake pedal sub-assembly.
3.
REMOVE BRAKE PEDAL PAD
(a)
Remove the brake pedal pad.
