Reassembly

BRAKE SYSTEM (OTHER): BRAKE PEDAL: REASSEMBLY

1. INSTALL BRAKE PEDAL PAD

(a) Install the brake pedal pad.

2. INSTALL BRAKE PEDAL BUSHING

(a) Apply lithium soap base glycol grease to 2 new brake pedal bushings.

(b) install the 2 brake pedal bushings to the brake pedal sub-assembly.

3. INSTALL BRAKE PEDAL SUB-ASSEMBLY

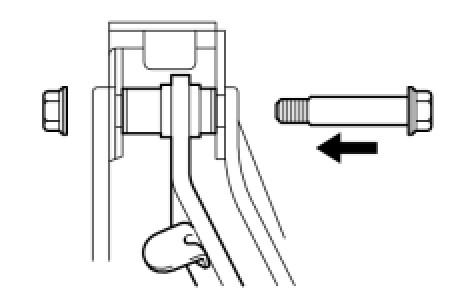

(a) Install the brake pedal sub-assembly to the brake pedal support sub-assembly with the bolt and nut as shown in the illustration.





Torque : 37 Nm (377 kgf-cm, 27 ft-lbf)
