Navigation Function Selector Switch: Testing and Inspection





METER / GAUGE / DISPLAY: SATELLITE SWITCH: INSPECTION

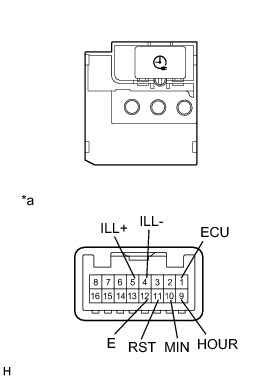

1. INSPECT SATELLITE SWITCH SET (w/o Heads-up Display)

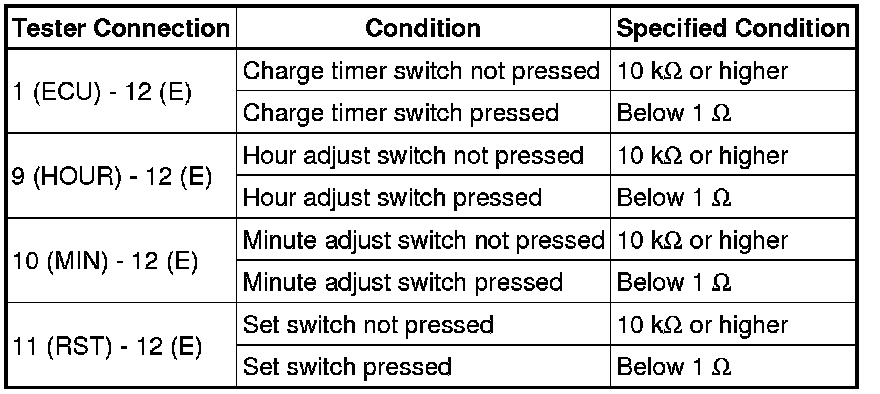

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

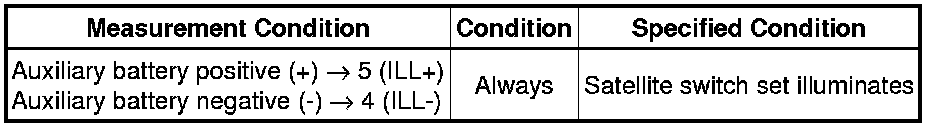

(b) Apply auxiliary battery voltage from the wire harness back side between the terminals of the switch, and check the lighting condition of the satellite switch set.

OK:





Text in Illustration





If the result is not as specified, replace the satellite switch set.

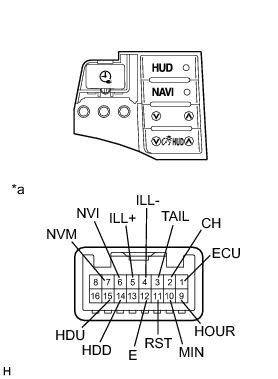

2. INSPECT SATELLITE SWITCH SET (w/ Heads-up Display)

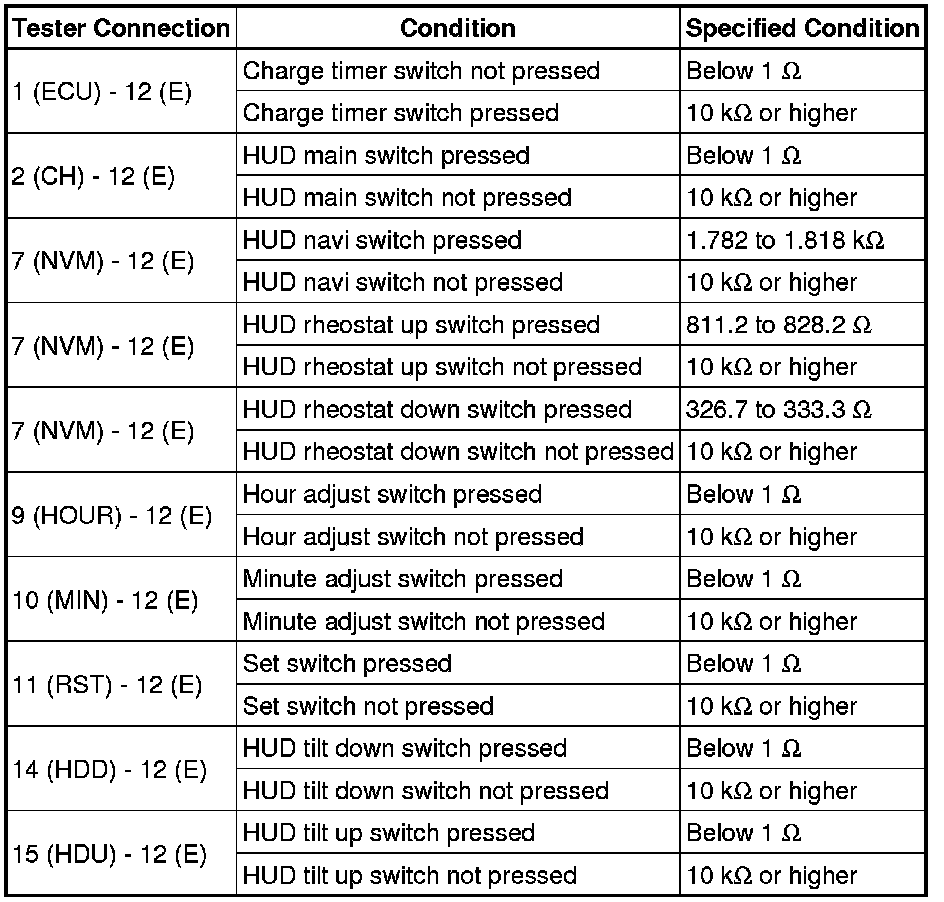

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

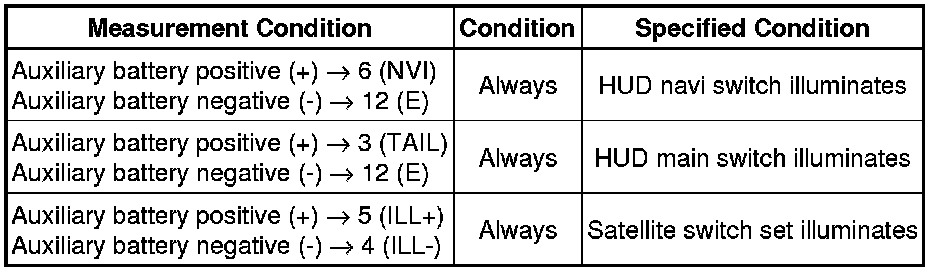

(b) Apply auxiliary battery voltage from the wire harness back side between the terminals of the switch, and check the lighting condition of the satellite switch set.

OK:





Text in Illustration





If the result is not as specified, replace the satellite switch set.
