Installation





AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

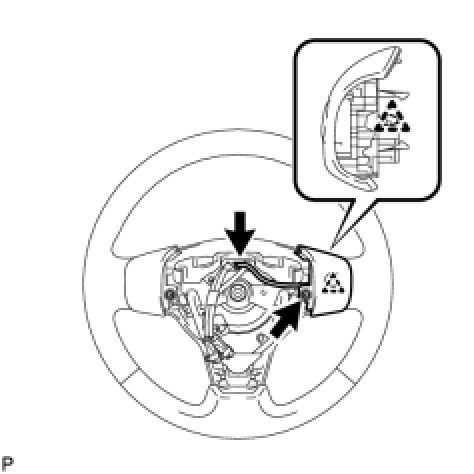

1. INSTALL STEERING PAD SWITCH ASSEMBLY (for Standard Models)

(a) Attach the claw to install the steering pad switch assembly.





(b) Install the screw.

(c) Connect the connector.

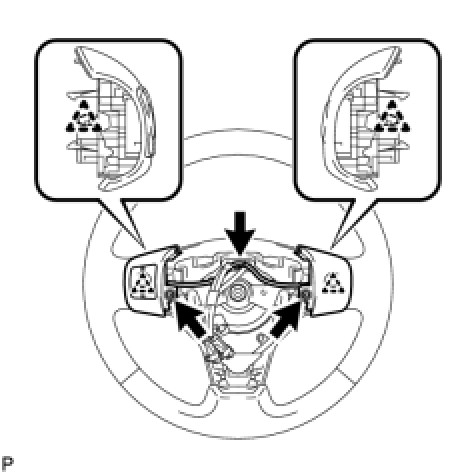

2. INSTALL STEERING PAD SWITCH ASSEMBLY (for CD Changer Models)

(a) Attach the 2 claws to install the steering pad switch assembly.





(b) Install the 2 screws.

(c) Connect the connector.

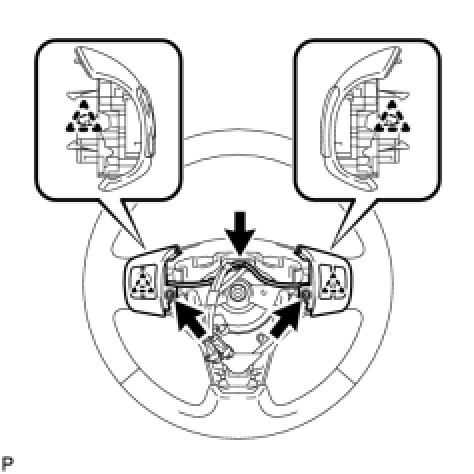

3. INSTALL STEERING PAD SWITCH ASSEMBLY (for Premium Sound Models)

(a) Attach the 2 claws to install the steering pad switch assembly.





(b) Install the 2 screws.

(c) Connect the connector.

4. INSTALL STEERING PAD ASSEMBLY Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
