Installation

BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

1. INSTALL STEERING ANGLE SENSOR

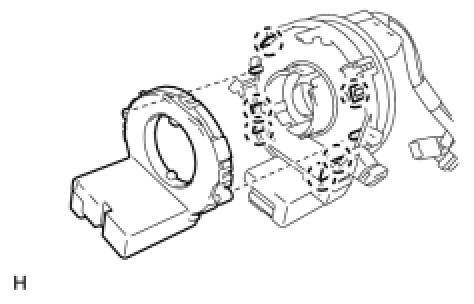

(a) Align the holes of the sensor with the pins on the spiral cable, and attach the 6 claws to install the sensor to the spiral cable.





2. INSTALL SPIRAL CABLE SUB-ASSEMBLY Installation

3. INSTALL STEERING COLUMN COVER Installation

4. INSTALL STEERING WHEEL ASSEMBLY Installation

5. INSTALL STEERING PAD ASSEMBLY Installation

6. INSPECT STEERING WHEEL CENTER POINT

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When reconnecting the cable to the negative (-) battery terminal after installing the steering angle sensor, check that the front tires and steering wheel are kept aligned straight ahead before and after connecting the cable to the negative (-) battery terminal.

8. INSPECT STEERING PAD ASSEMBLY Installation

9. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
