Removal
BRAKE CONTROL: VSC OFF SWITCH: REMOVAL 1.
REMOVE SWITCH BASE
(a)
Remove the switch base
Removal.
2.
REMOVE VSC OFF SWITCH
(a)
Disconnect the VSC OFF switch connector.
(b)

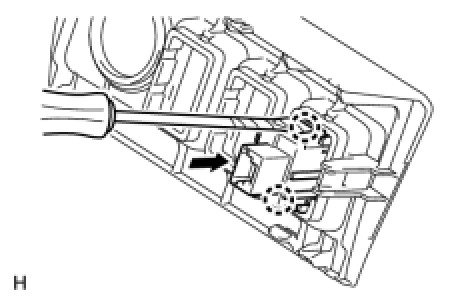

Using a screwdriver, detach the 2 claws and remove the VSC OFF switch from the switch base.
HINT Tape the screwdriver tip before use.
