Installation

BRAKE CONTROL: REAR SPEED SENSOR (for 2WD): INSTALLATION

HINT
* Use the same procedure for the RH and LH sides.
* The procedures listed below are for the LH side.

1. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH (SKID CONTROL SENSOR)

(a) Install the rear axle hub and bearing LH Installation.

2. INSTALL REAR DISC Reassembly

3. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY LH Reassembly

4. INSTALL SKID CONTROL SENSOR WIRE

NOTICE:
To prevent interference with other parts, do not twist the painted line areas of the sensor wire when installing it.

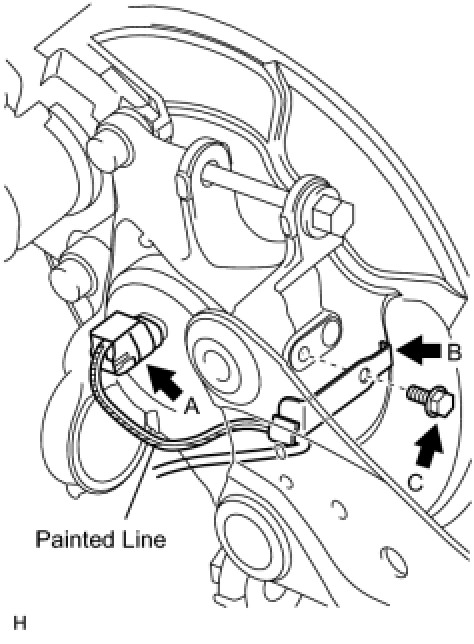

(a) Connect the skid control sensor wire connector (labeled A) to the skid control sensor.





(b) Install the sensor clamp (labeled B) with the bolt (labeled C).

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:
Do not twist the sensor wire when installing the clamp.

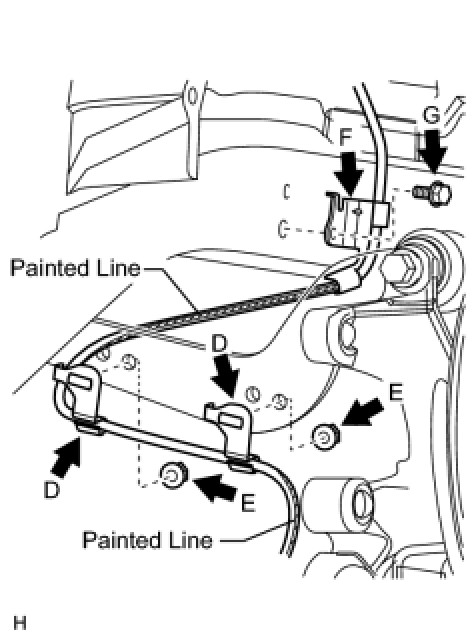

(c) Install the 2 sensor clamps (labeled D) with the 2 nuts (labeled E).





Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

NOTICE:
Do not twist the sensor wire when installing the clamps.

(d) Install the sensor clamp (labeled F) with the bolt (labeled G).

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:
Do not twist the sensor wire when installing the clamp.

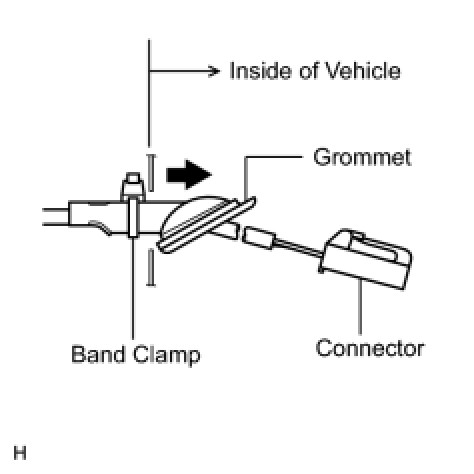

(e) Insert the connector and grommet into the inside of the vehicle through the hole in the wheel house.





NOTICE:
Make sure the grommet band clamp remains on the outside of the vehicle.

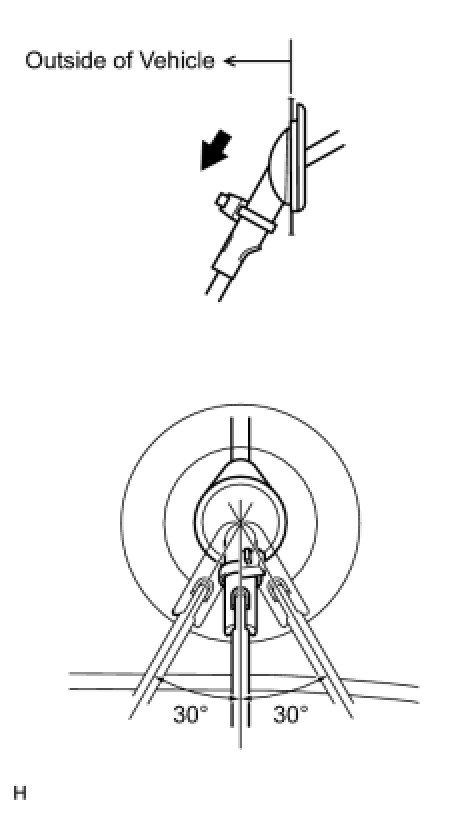

(f) Hold the grommet and pull it toward the outside of the vehicle. Then fix the grommet in place so that it is not tilted.





NOTICE:
* When pulling out the grommet, do not grip the sensor wire.
* Fix the grommet in place within the range shown in the illustration.

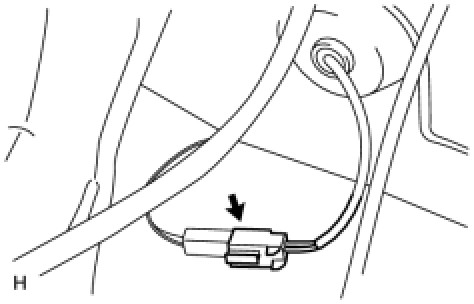

(g) Connect the skid control sensor wire connector.





5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

(a) Install the deck trim side panel LH Installation.

6. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

8. CHECK SPEED SENSOR SIGNAL

(a) Check the speed sensor signal Test Mode Procedure.
