Reassembly





AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

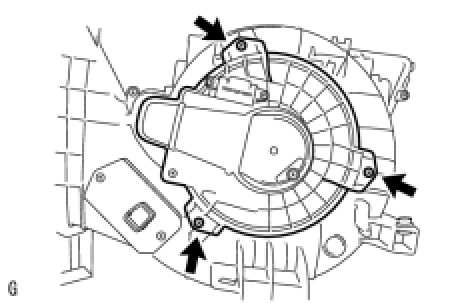

1. INSTALL BLOWER MOTOR

(a) Install the blower motor with the 3 screws.

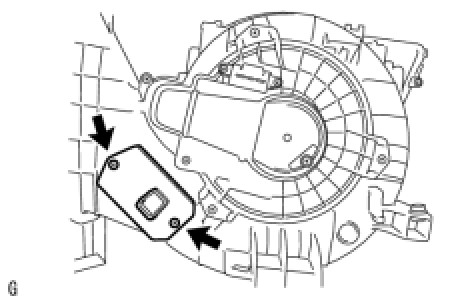

2. INSTALL BLOWER RESISTOR (for Manual Air Conditioning System)

(a) Install the blower resistor with the 2 screws.

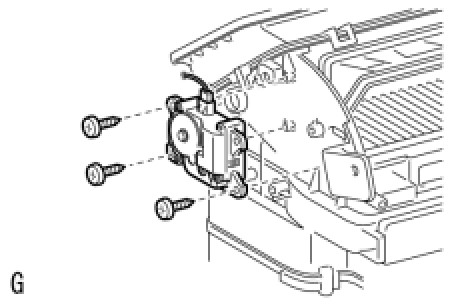

3. INSTALL AIR INLET CONTROL SERVO MOTOR (for Automatic Air Conditioning System)

(a) Install the air inlet servo motor with the 3 screws.

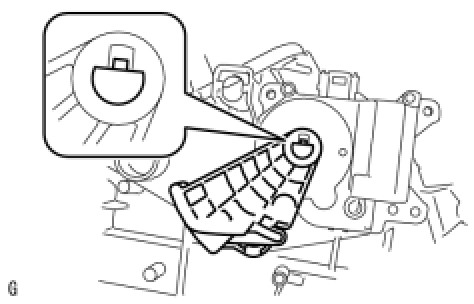

(b) Attach the claw to install the lever.

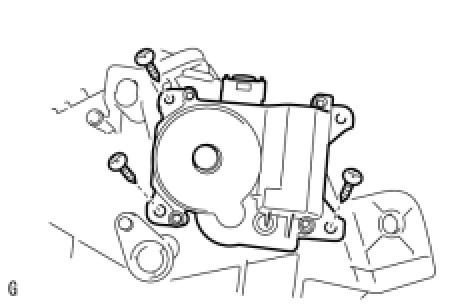

4. INSTALL AIR INLET CONTROL SERVO MOTOR (for Manual Air Conditioning System)

(a) Install the air inlet servo motor with the 3 screws.

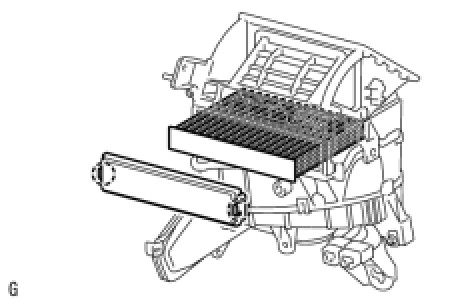

5. INSTALL AIR FILTER CASE





(a) Install the air filter.

(b) Attach the 2 claws to install the air filter case.

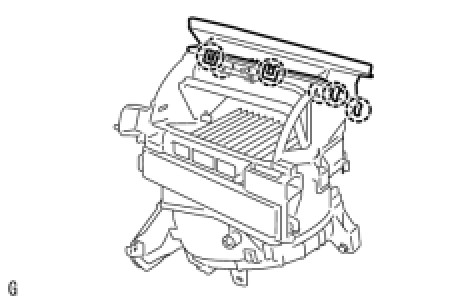

6. INSTALL HEATER TO REGISTER DUCT ASSEMBLY





(a) Attach the 7 claws to install the register duct.
