Installation

LIGHTING: STOP LIGHT SWITCH: INSTALLATION

1. INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER

(a) Install the stop light switch mounting adjuster to the pedal support.

2. INSTALL STOP LIGHT SWITCH ASSEMBLY

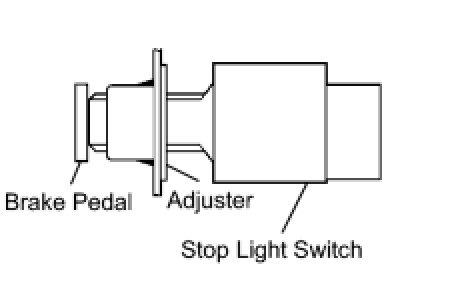

(a) Install the stop light switch to the adjuster until it slightly touches the brake pedal.





NOTICE:
Do not depress the brake pedal.

(b) Turn the stop light switch clockwise to install it.





NOTICE:
Do not depress the brake pedal.

Torque : 1.5 Nm (15 kgf-cm, 13 in-lbf)

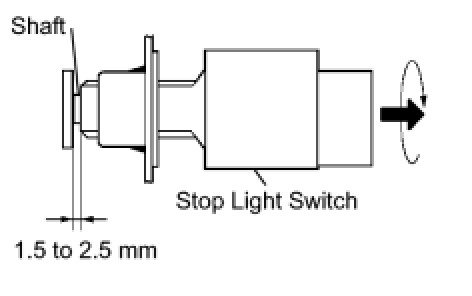

(c) Check the stop light switch clearance.

Stop light switch clearance:

1.5 to 2.5 mm (0.0590 to 0.0984 in.)

(d) Connect the connector to the stop light switch.
