WIPER AND WASHER: WIPER SWITCH: INSTALLATION

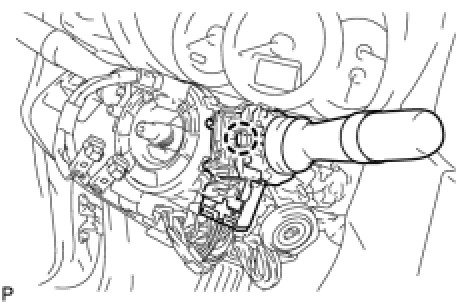

1. INSTALL WIPER AND WASHER SWITCH ASSEMBLY





(a) Attach the claw to install the wiper switch.

(b) Connect the connectors.

NOTICE:
Do not push the claw with excessive force as damage may occur.

2. INSTALL STEERING COLUMN COVER LOWER Installation

3. INSTALL STEERING COLUMN COVER UPPER Installation

4. INSTALL STEERING WHEEL ASSEMBLY Installation

5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

6. INSPECT STEERING WHEEL CENTER POINT

7. INSTALL STEERING PAD ASSEMBLY Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

9. INSPECT STEERING PAD ASSEMBLY Installation

10. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Installation.
